MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

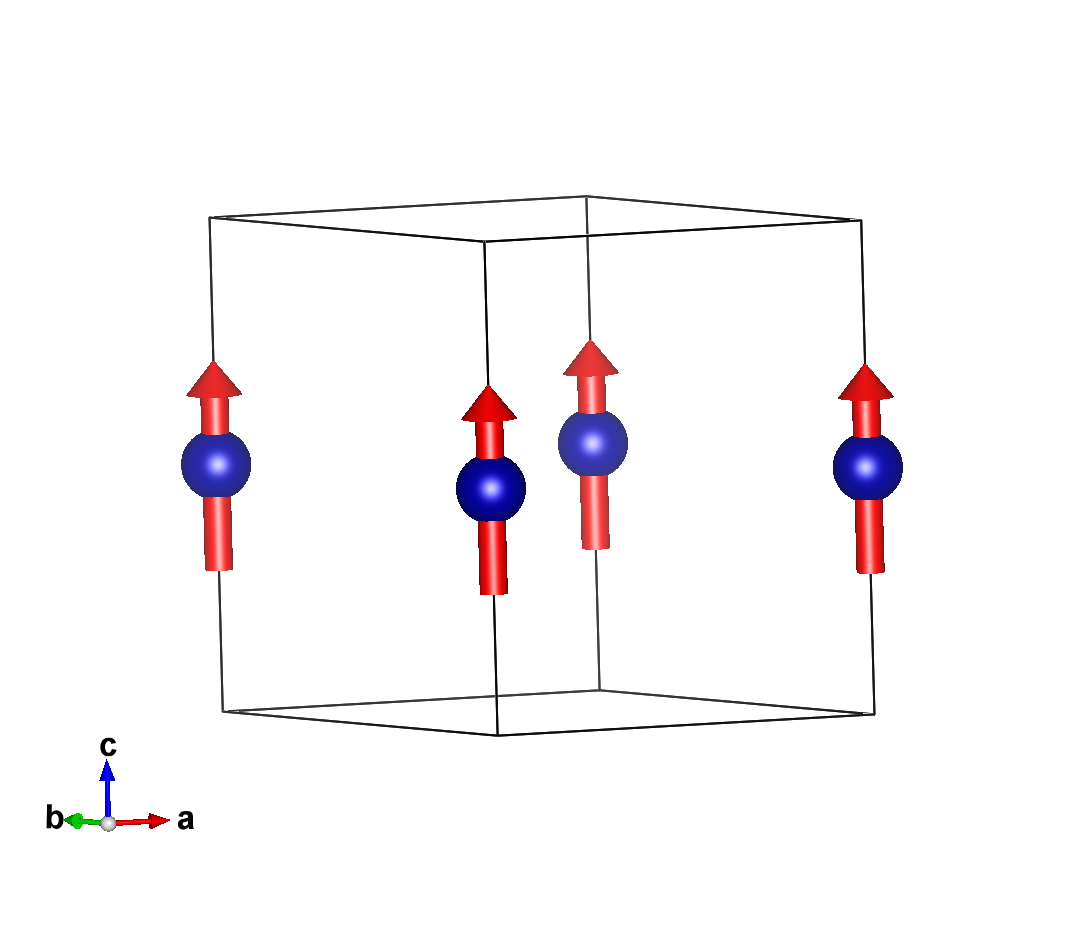

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.50000	1	0,0,m_z	0.0	0.0	2.2(1)	2.20

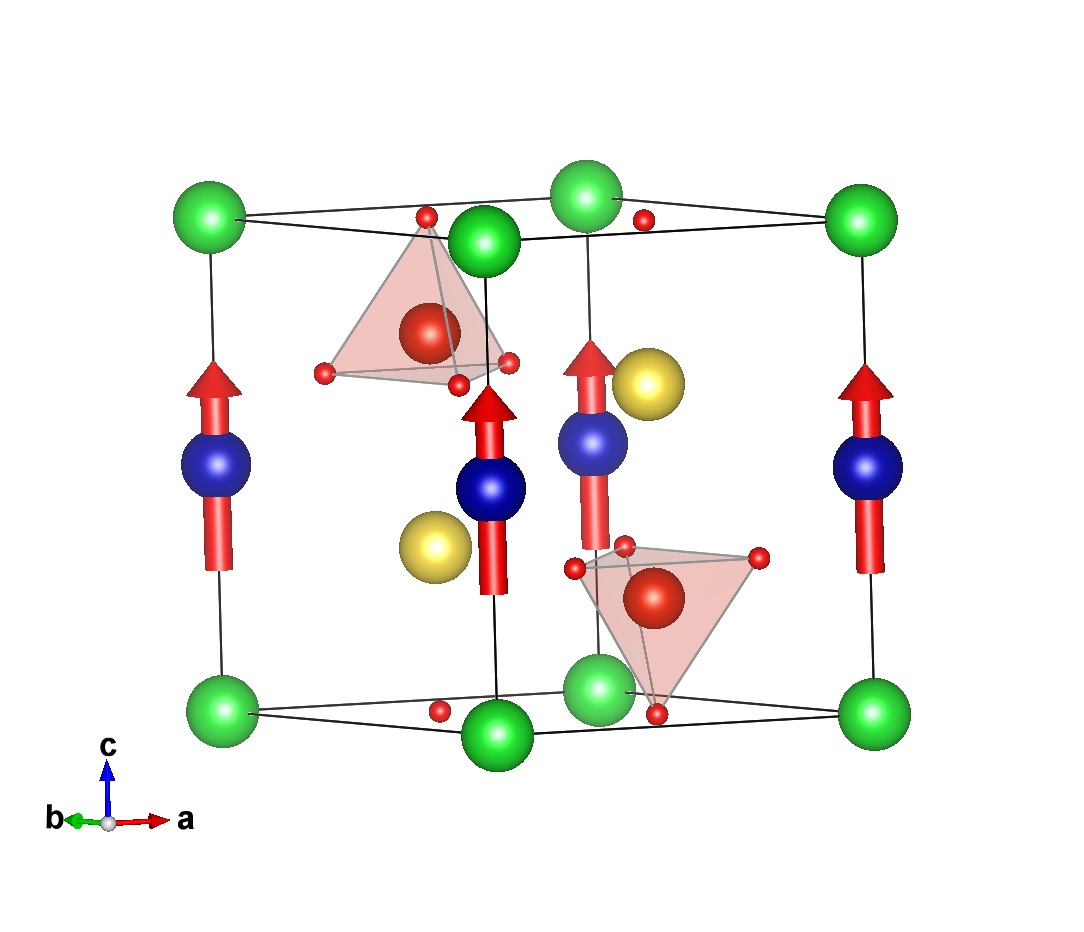

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Na1	Na	0.33333	0.66667	0.33390	2
Ba1	Ba	0.00000	0.00000	0.00000	1
V1	V	0.33333	0.66667	0.76710	2
O1	O	0.33333	0.66667	0.00210	2
O2	O	0.34100	0.17060	0.31500	6

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	2.20000

Atom	x	y	z
1	0.33333	0.66667	0.33390
2	0.66667	0.33333	0.66610

Atom	x	y	z
1	0.00000	0.00000	0.00000

Atom	x	y	z
1	0.33333	0.66667	0.76710
2	0.66667	0.33333	0.23290

Atom	x	y	z
1	0.33333	0.66667	0.00210
2	0.66667	0.33333	0.99790

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.50000	1	0,0,m_z	0.0	0.0	2.2(1)	2.20

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	2.20000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	1
