MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cu1	Cu	0.12500	0.77446	0.02446	12	0,m_y,m_y	0.0	0.28	0.28	0.40

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Te1	Te	0.33775	0.91970	0.05890	24
Sr1	Sr	0.05335	0.05335	0.05335	8
Sr2	Sr	0.87500	0.87500	0.87500	4
O1	O	0.57936	0.92944	0.37654	24
O2	O	0.26670	0.81156	0.97806	24
O3	O	0.22239	0.97760	0.12925	24

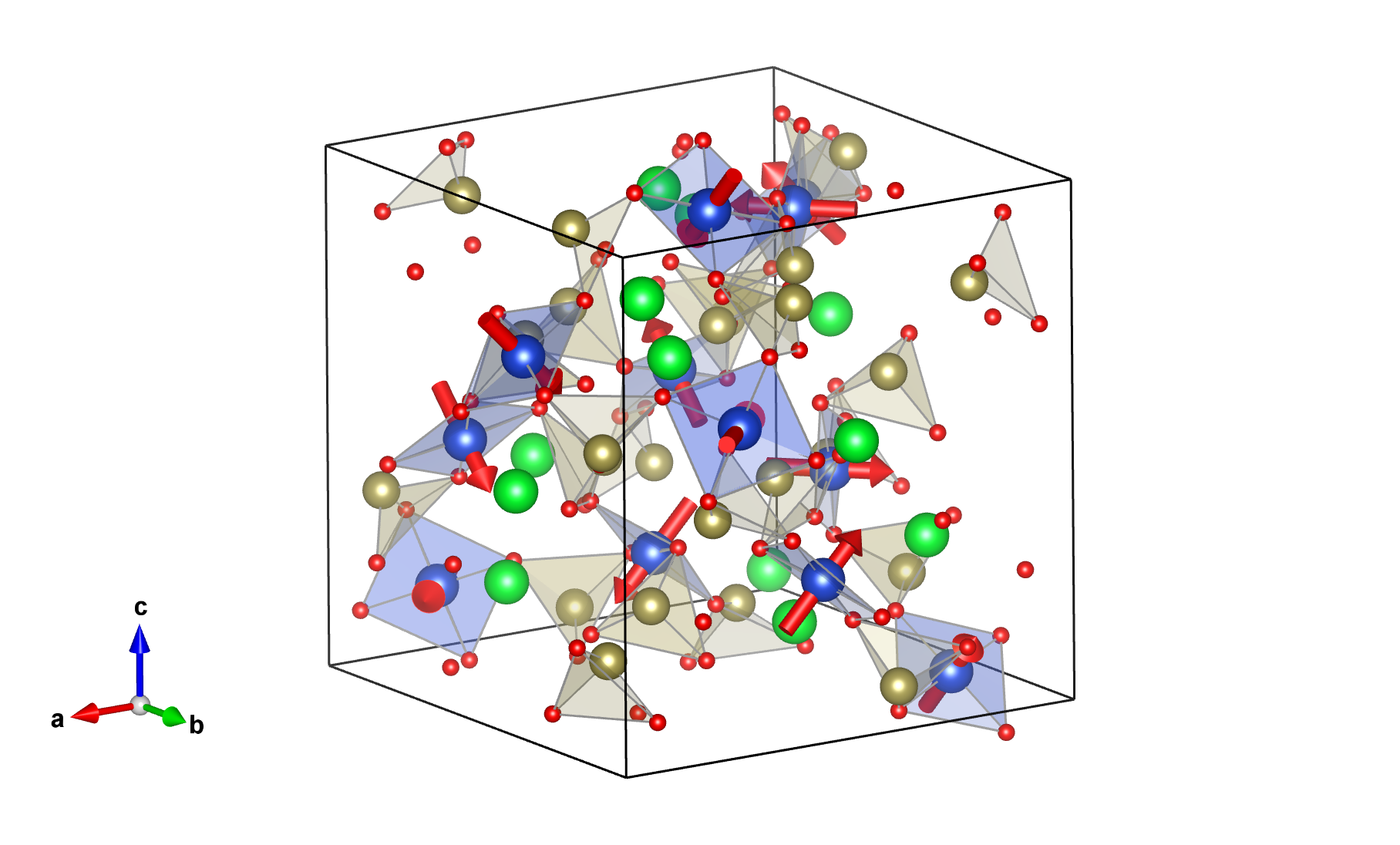

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

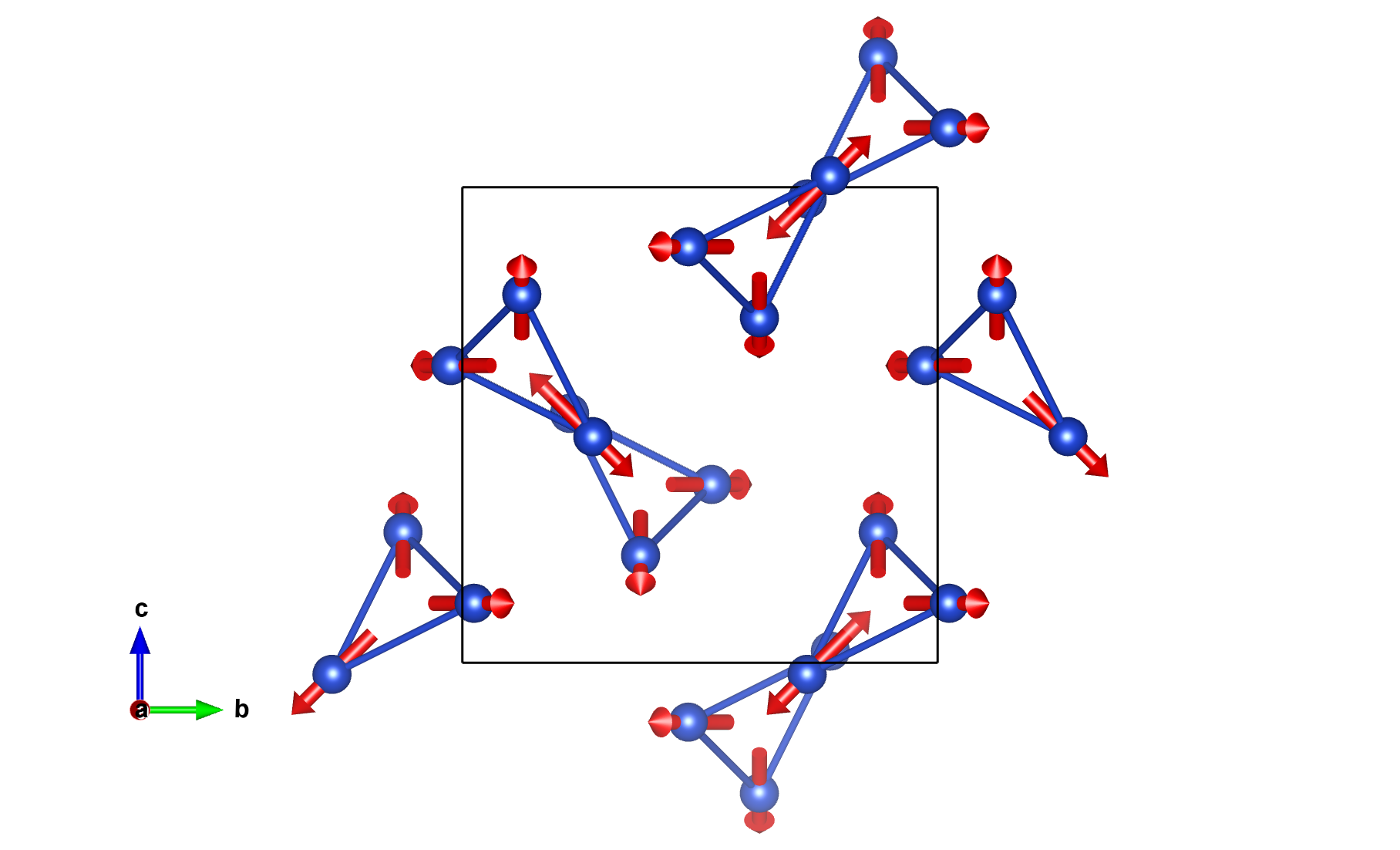

Set of atoms in the unit cell related by symmetry with the magnetic atom Cu1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.77446	0.02446	0,m_y,m_y	0.00000	0.28000	0.28000
2	0.37500	0.22554	0.52446	0,-m_y,m_y	0.00000	-0.28000	0.28000
3	0.87500	0.27446	0.47554	0,m_y,-m_y	0.00000	0.28000	-0.28000
4	0.77446	0.02446	0.12500	m_y,m_y,0	0.28000	0.28000	0.00000
5	0.22554	0.52446	0.37500	-m_y,m_y,0	-0.28000	0.28000	0.00000
6	0.47554	0.87500	0.27446	-m_y,0,m_y	-0.28000	0.00000	0.28000
7	0.02446	0.12500	0.77446	m_y,0,m_y	0.28000	0.00000	0.28000
8	0.62500	0.72554	0.97554	0,-m_y,-m_y	0.00000	-0.28000	-0.28000
9	0.52446	0.37500	0.22554	m_y,0,-m_y	0.28000	0.00000	-0.28000
10	0.97554	0.62500	0.72554	-m_y,0,-m_y	-0.28000	0.00000	-0.28000
11	0.27446	0.47554	0.87500	m_y,-m_y,0	0.28000	-0.28000	0.00000
12	0.72554	0.97554	0.62500	-m_y,-m_y,0	-0.28000	-0.28000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Te1:

Set of atoms in the unit cell related by symmetry with the atom Sr1:

Set of atoms in the unit cell related by symmetry with the atom Sr2:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cu1	Cu	0.12500	0.77446	0.02446	12	0,m_y,m_y	0.0	0.28	0.28	0.40

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files
