MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

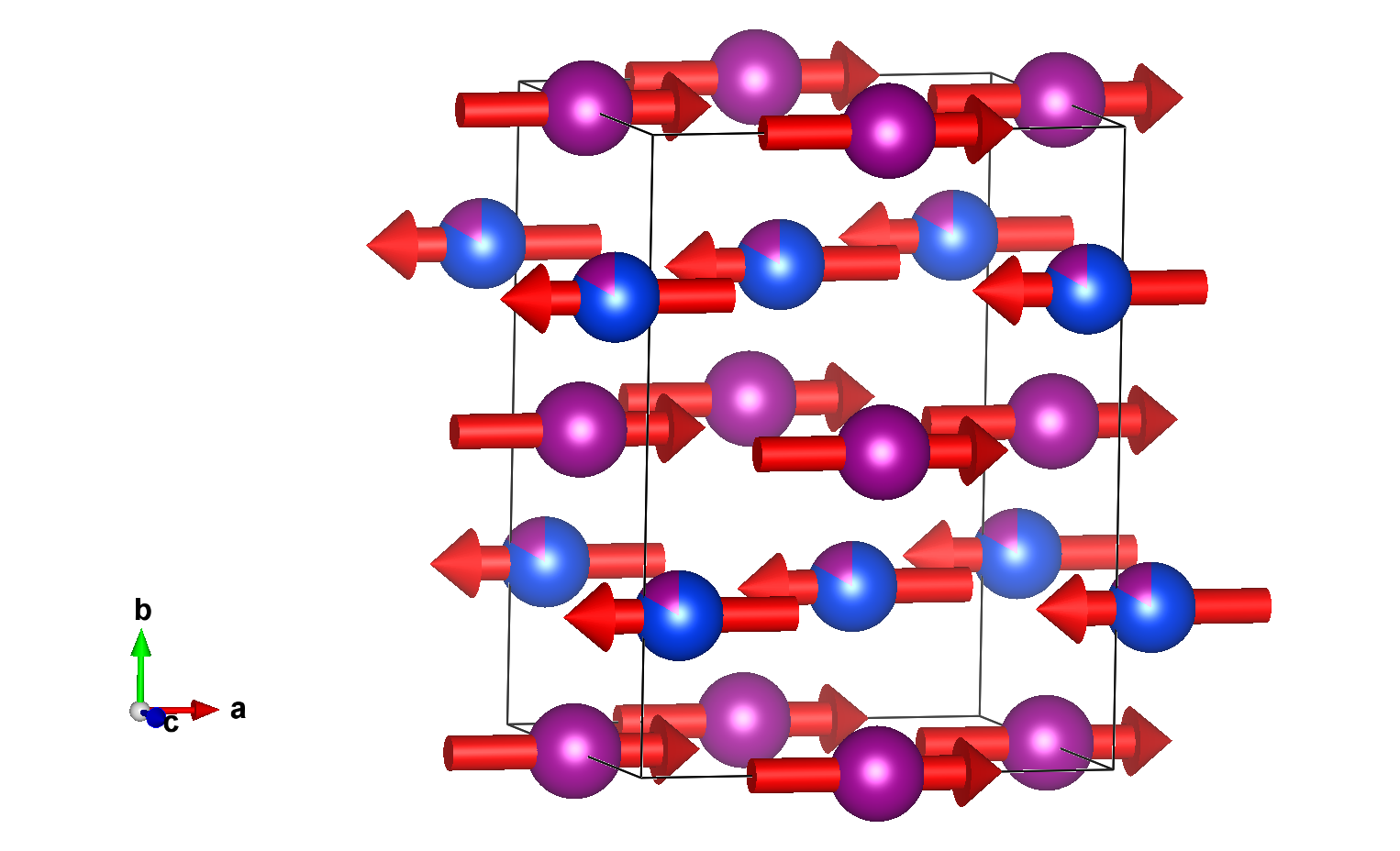

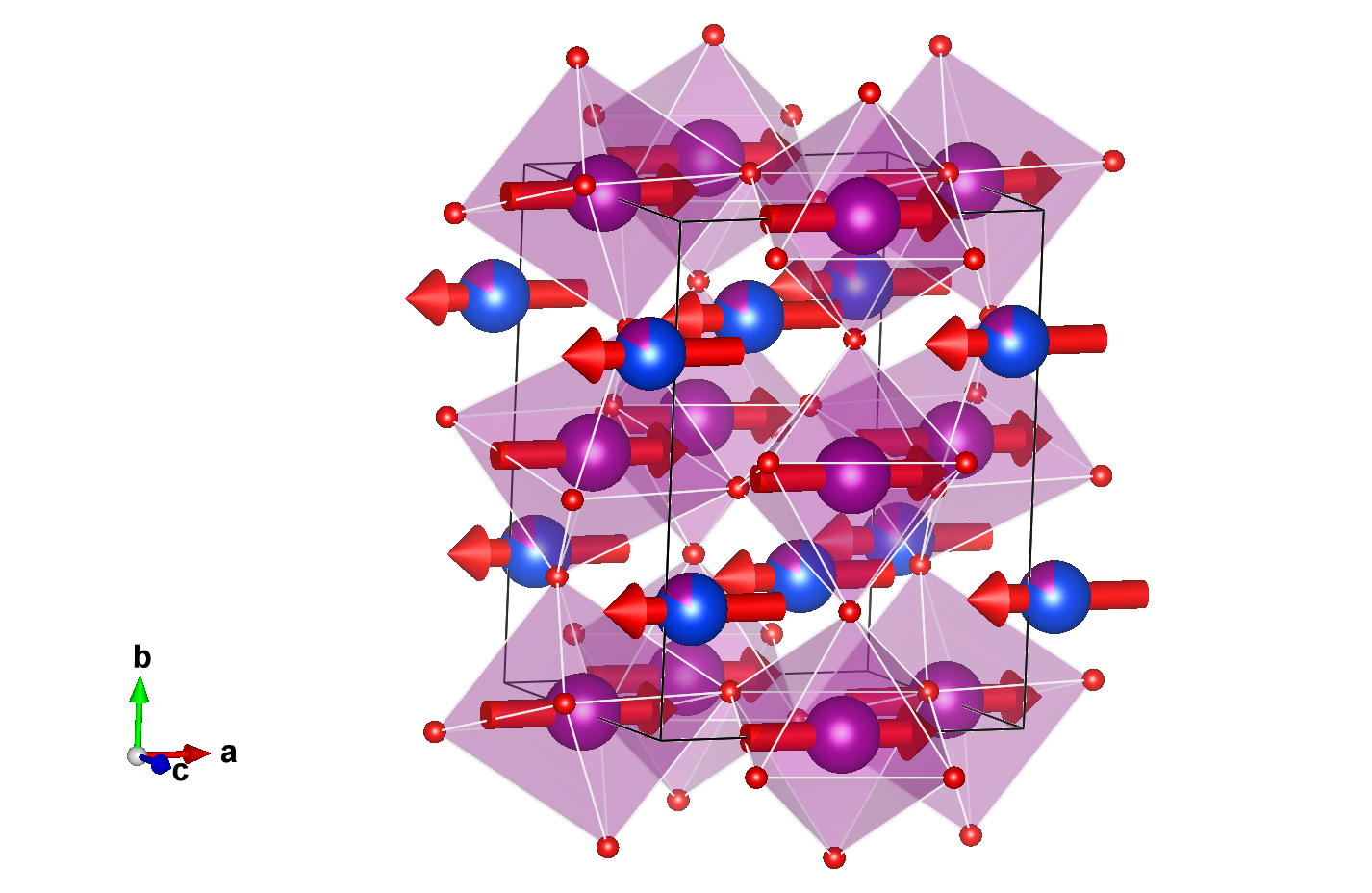

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	\|M\|
Ho1	Ho	0.07830	0.25000	0.98340	0.832	4	m_x,0,m_z	-2.02(2)	2.02
Mn1	Mn	0.07830	0.25000	0.98340	0.168	4	m_x,0,m_z	-2.02(2)	2.02
Mn2	Mn	0.00000	0.00000	0.50000	1.	4	m_x,m_y,m_z	2.20(2)	2.20

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
O1	O	0.46190	0.25000	0.10590	1.	4
O2	O	0.31830	0.05340	0.69830	1.	8

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.07830	0.25000	0.98340	m_x,0,m_z	-2.02000
2	0.57830	0.25000	0.51660	m_x,0,-m_z	-2.02000
3	0.92170	0.75000	0.01660	m_x,0,m_z	-2.02000
4	0.42170	0.75000	0.48340	m_x,0,-m_z	-2.02000

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.07830	0.25000	0.98340	m_x,0,m_z	-2.02000
2	0.57830	0.25000	0.51660	m_x,0,-m_z	-2.02000
3	0.92170	0.75000	0.01660	m_x,0,m_z	-2.02000
4	0.42170	0.75000	0.48340	m_x,0,-m_z	-2.02000

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.00000	0.00000	0.50000	m_x,m_y,m_z	2.20000
2	0.50000	0.50000	0.00000	m_x,-m_y,-m_z	2.20000
3	0.00000	0.50000	0.50000	m_x,-m_y,m_z	2.20000
4	0.50000	0.00000	0.00000	m_x,m_y,-m_z	2.20000

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	\|M\|
Ho1	Ho	0.07830	0.25000	0.98340	0.832	4	m_x,0,m_z	-2.02(2)	2.02
Mn1	Mn	0.07830	0.25000	0.98340	0.168	4	m_x,0,m_z	-2.02(2)	2.02
Mn2	Mn	0.00000	0.00000	0.50000	1.	4	m_x,m_y,m_z	2.20(2)	2.20

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.07830	0.25000	0.98340	m_x,0,m_z	-2.02000
2	0.57830	0.25000	0.51660	m_x,0,-m_z	-2.02000
3	0.92170	0.75000	0.01660	m_x,0,m_z	-2.02000
4	0.42170	0.75000	0.48340	m_x,0,-m_z	-2.02000

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.07830	0.25000	0.98340	m_x,0,m_z	-2.02000
2	0.57830	0.25000	0.51660	m_x,0,-m_z	-2.02000
3	0.92170	0.75000	0.01660	m_x,0,m_z	-2.02000
4	0.42170	0.75000	0.48340	m_x,0,-m_z	-2.02000

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.00000	0.00000	0.50000	m_x,m_y,m_z	2.20000
2	0.50000	0.50000	0.00000	m_x,-m_y,-m_z	2.20000
3	0.00000	0.50000	0.50000	m_x,-m_y,m_z	2.20000
4	0.50000	0.00000	0.00000	m_x,m_y,-m_z	2.20000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3+	1	1	primary	7
