Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y,x-y,z,+1	{ 3⁺₀₀₁ \| 0 }
3	-x+y,-x,z,+1	{ 3^-₀₀₁ \| 0 }
4	y,x,-z+1/2,+1	{ 2₁₁₀ \| 0 0 1/2 }
5	-x,-x+y,-z+1/2,+1	{ 2₀₁₀ \| 0 0 1/2 }
6	x-y,-y,-z+1/2,+1	{ 2₁₀₀ \| 0 0 1/2 }
7	-x,-y,-z,-1	{ -1' \| 0 }
8	y,-x+y,-z,-1	{ -3'⁺₀₀₁ \| 0 }
9	x-y,x,-z,-1	{ -3'^-₀₀₁ \| 0 }
10	-y,-x,z+1/2,-1	{ m'₁₁₀ \| 0 0 1/2 }
11	x,x-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
12	-x+y,y,z+1/2,-1	{ m'₁₀₀ \| 0 0 1/2 }
(1/3,2/3,2/3) + set click here to show and hide
13	x+1/3,y+2/3,z+2/3,+1	{ 1 \| 1/3 2/3 2/3 }
14	-y+1/3,x-y+2/3,z+2/3,+1	{ 3⁺₀₀₁ \| 1/3 2/3 2/3 }
15	-x+y+1/3,-x+2/3,z+2/3,+1	{ 3^-₀₀₁ \| 1/3 2/3 2/3 }
16	y+1/3,x+2/3,-z+1/6,+1	{ 2₁₁₀ \| 1/3 2/3 1/6 }
17	-x+1/3,-x+y+2/3,-z+1/6,+1	{ 2₀₁₀ \| 1/3 2/3 1/6 }
18	x-y+1/3,-y+2/3,-z+1/6,+1	{ 2₁₀₀ \| 1/3 2/3 1/6 }
19	-x+1/3,-y+2/3,-z+2/3,-1	{ -1' \| 1/3 2/3 2/3 }
20	y+1/3,-x+y+2/3,-z+2/3,-1	{ -3'⁺₀₀₁ \| 1/3 2/3 2/3 }
21	x-y+1/3,x+2/3,-z+2/3,-1	{ -3'^-₀₀₁ \| 1/3 2/3 2/3 }
22	-y+1/3,-x+2/3,z+1/6,-1	{ m'₁₁₀ \| 1/3 2/3 1/6 }
23	x+1/3,x-y+2/3,z+1/6,-1	{ m'₀₁₀ \| 1/3 2/3 1/6 }
24	-x+y+1/3,y+2/3,z+1/6,-1	{ m'₁₀₀ \| 1/3 2/3 1/6 }
(2/3,1/3,1/3) + set click here to show and hide
25	x+2/3,y+1/3,z+1/3,+1	{ 1 \| 2/3 1/3 1/3 }
26	-y+2/3,x-y+1/3,z+1/3,+1	{ 3⁺₀₀₁ \| 2/3 1/3 1/3 }
27	-x+y+2/3,-x+1/3,z+1/3,+1	{ 3^-₀₀₁ \| 2/3 1/3 1/3 }
28	y+2/3,x+1/3,-z+5/6,+1	{ 2₁₁₀ \| 2/3 1/3 5/6 }
29	-x+2/3,-x+y+1/3,-z+5/6,+1	{ 2₀₁₀ \| 2/3 1/3 5/6 }
30	x-y+2/3,-y+1/3,-z+5/6,+1	{ 2₁₀₀ \| 2/3 1/3 5/6 }
31	-x+2/3,-y+1/3,-z+1/3,-1	{ -1' \| 2/3 1/3 1/3 }
32	y+2/3,-x+y+1/3,-z+1/3,-1	{ -3'⁺₀₀₁ \| 2/3 1/3 1/3 }
33	x-y+2/3,x+1/3,-z+1/3,-1	{ -3'^-₀₀₁ \| 2/3 1/3 1/3 }
34	-y+2/3,-x+1/3,z+5/6,-1	{ m'₁₁₀ \| 2/3 1/3 5/6 }
35	x+2/3,x-y+1/3,z+5/6,-1	{ m'₀₁₀ \| 2/3 1/3 5/6 }
36	-x+y+2/3,y+1/3,z+5/6,-1	{ m'₁₀₀ \| 2/3 1/3 5/6 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,x-y,z,+1	3⁺₀₀₁
3	-x+y,-x,z,+1	3^-₀₀₁
4	y,x,-z,+1	2₁₁₀
5	-x,-x+y,-z,+1	2₀₁₀
6	x-y,-y,-z,+1	2₁₀₀
7	-x,-y,-z,-1	-1'
8	y,-x+y,-z,-1	-3'⁺₀₀₁
9	x-y,x,-z,-1	-3'^-₀₀₁
10	-y,-x,z,-1	m'₁₁₀
11	x,x-y,z,-1	m'₀₁₀
12	-x+y,y,z,-1	m'₁₀₀

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ru1	Ru	0.00000	0.00000	0.16799	12	0,0,m_z	0.0	0.0	1.85(5)	1.85

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ag1	Ag	0.00000	0.00000	0.43001	12
O1	O	0.71653	0.04427	0.13324	36

[Show all atoms in unit cell and their moment relations]

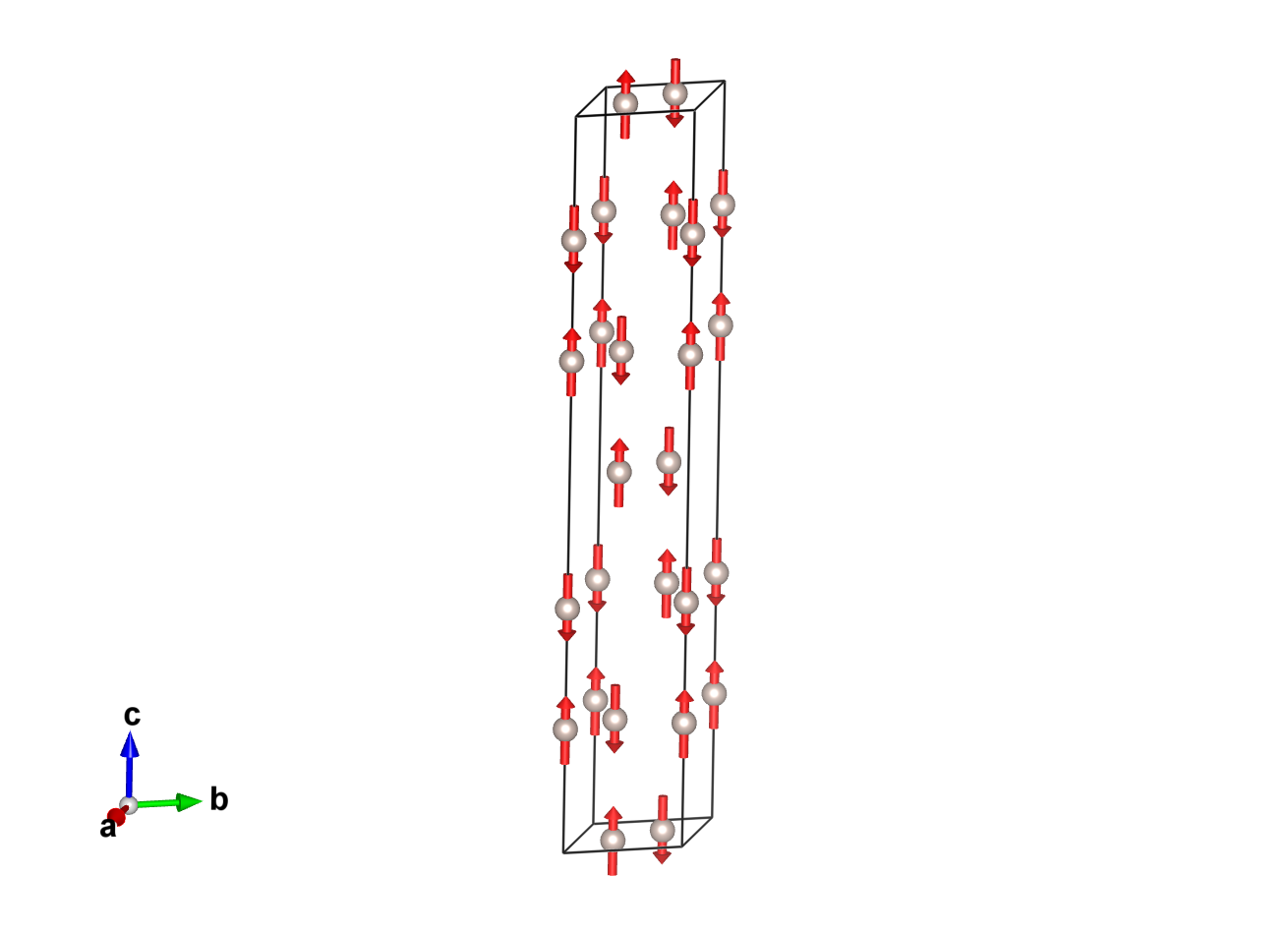

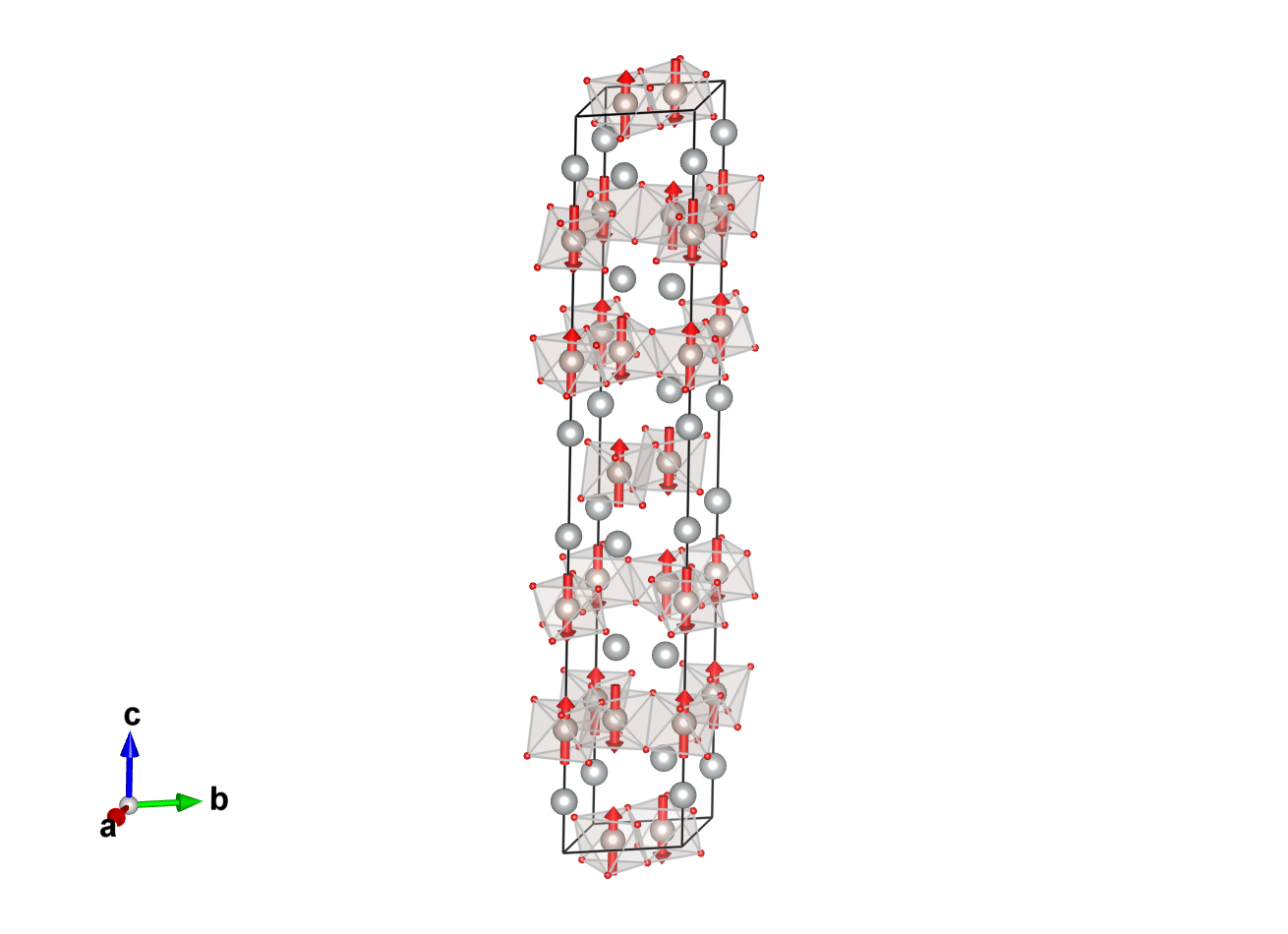

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ru1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.16799	0,0,m_z	0.00000	0.00000	1.85000
2	0.00000	0.00000	0.33201	0,0,-m_z	0.00000	0.00000	-1.85000
3	0.00000	0.00000	0.83201	0,0,-m_z	0.00000	0.00000	-1.85000
4	0.00000	0.00000	0.66799	0,0,m_z	0.00000	0.00000	1.85000
(1/3,2/3,2/3) + set click here to show and hide
5	0.33333	0.66667	0.83466	0,0,m_z	0.00000	0.00000	1.85000
6	0.33333	0.66667	0.99868	0,0,-m_z	0.00000	0.00000	-1.85000
7	0.33333	0.66667	0.49868	0,0,-m_z	0.00000	0.00000	-1.85000
8	0.33333	0.66667	0.33466	0,0,m_z	0.00000	0.00000	1.85000
(2/3,1/3,1/3) + set click here to show and hide
9	0.66667	0.33333	0.50132	0,0,m_z	0.00000	0.00000	1.85000
10	0.66667	0.33333	0.66534	0,0,-m_z	0.00000	0.00000	-1.85000
11	0.66667	0.33333	0.16534	0,0,-m_z	0.00000	0.00000	-1.85000
12	0.66667	0.33333	0.00132	0,0,m_z	0.00000	0.00000	1.85000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ag1:

Atom	x	y	z
1	0.00000	0.00000	0.43001
2	0.00000	0.00000	0.06999
3	0.00000	0.00000	0.56999
4	0.00000	0.00000	0.93001
(1/3,2/3,2/3) + set click here to show and hide
5	0.33333	0.66667	0.09668
6	0.33333	0.66667	0.73666
7	0.33333	0.66667	0.23666
8	0.33333	0.66667	0.59668
(2/3,1/3,1/3) + set click here to show and hide
9	0.66667	0.33333	0.76334
10	0.66667	0.33333	0.40332
11	0.66667	0.33333	0.90332
12	0.66667	0.33333	0.26334

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.71653	0.04427	0.13324
2	0.95573	0.67226	0.13324
3	0.32774	0.28347	0.13324
4	0.04427	0.71653	0.36676
5	0.28347	0.32774	0.36676
6	0.67226	0.95573	0.36676
7	0.28347	0.95573	0.86676
8	0.04427	0.32774	0.86676
9	0.67226	0.71653	0.86676
10	0.95573	0.28347	0.63324
11	0.71653	0.67226	0.63324
12	0.32774	0.04427	0.63324
(1/3,2/3,2/3) + set click here to show and hide
13	0.04986	0.71094	0.79991
14	0.28906	0.33893	0.79991
15	0.66107	0.95014	0.79991
16	0.37760	0.38320	0.03343
17	0.61680	0.99441	0.03343
18	0.00559	0.62240	0.03343
19	0.61680	0.62240	0.53343
20	0.37760	0.99441	0.53343
21	0.00559	0.38320	0.53343
22	0.28906	0.95014	0.29991
23	0.04986	0.33893	0.29991
24	0.66107	0.71094	0.29991
(2/3,1/3,1/3) + set click here to show and hide
25	0.38320	0.37760	0.46657
26	0.62240	0.00559	0.46657
27	0.99441	0.61680	0.46657
28	0.71094	0.04986	0.70009
29	0.95014	0.66107	0.70009
30	0.33893	0.28906	0.70009
31	0.95014	0.28906	0.20009
32	0.71094	0.66107	0.20009
33	0.33893	0.04986	0.20009
34	0.62240	0.61680	0.96657
35	0.38320	0.00559	0.96657
36	0.99441	0.37760	0.96657

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ru1	Ru	0.00000	0.00000	0.16799	12	0,0,m_z	0.0	0.0	1.85(5)	1.85

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1-	1	1	primary	1
