Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

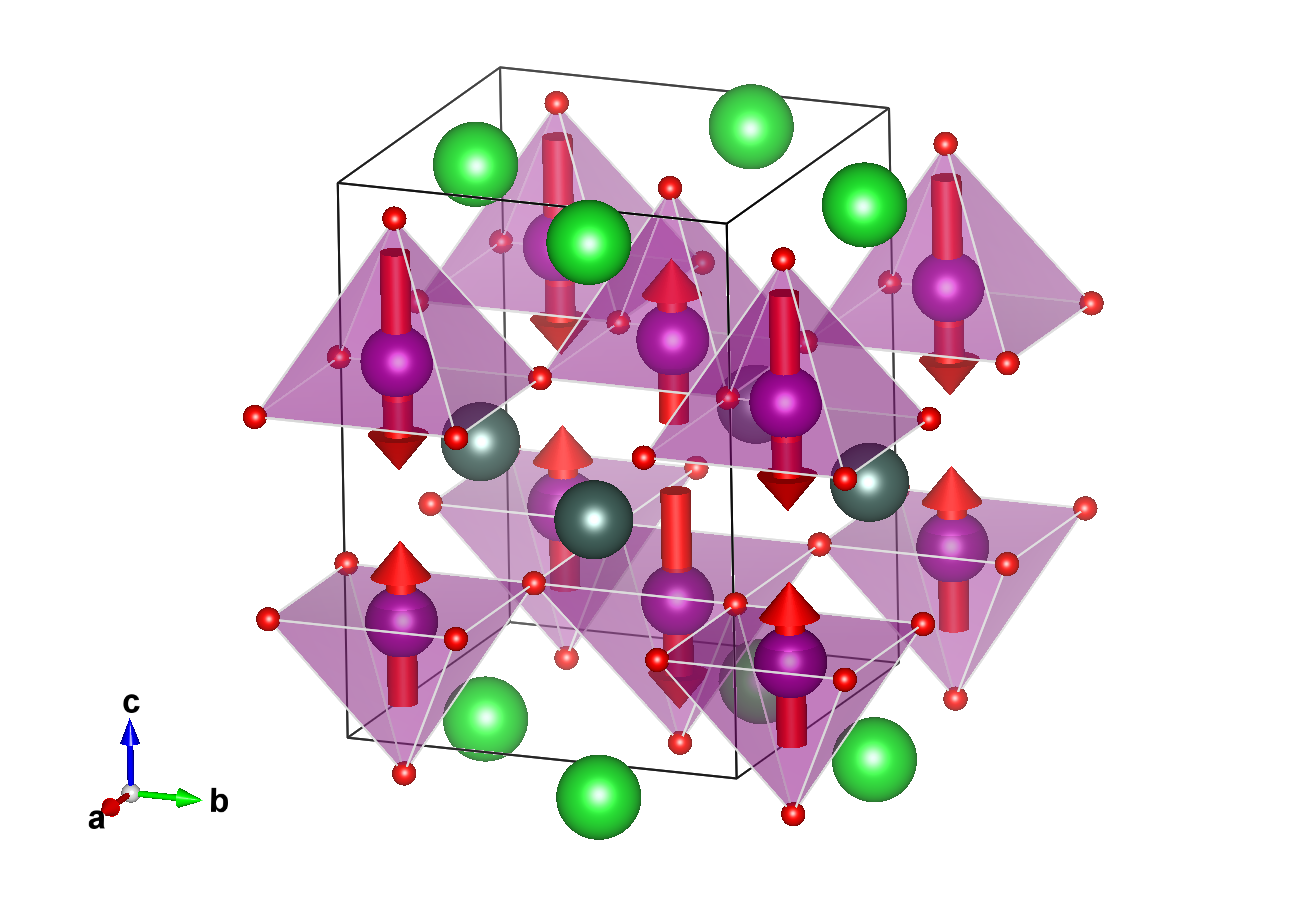

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.25000	0.25000	0.2794(9)	2	0,0,m_z	0.0	0.0	2.9(1)	2.90
Mn2	Mn	0.25000	0.25000	0.7486(9)	2	0,0,m_z	0.0	0.0	-3.9(1)	3.90

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Y1	Y	0.75000	0.25000	0.50000	2
Ba1	Ba	0.75000	0.25000	0.00000	2
O1	O2-	0.4911(6)	0.4911(6)	0.3164(3)	8
O2	O2-	0.25000	0.25000	0.00610	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.27940	0,0,m_z	0.00000	0.00000	2.90000
2	0.75000	0.75000	0.72060	0,0,m_z	0.00000	0.00000	2.90000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.74860	0,0,m_z	0.00000	0.00000	-3.90000
2	0.75000	0.75000	0.25140	0,0,m_z	0.00000	0.00000	-3.90000

Atom	x	y	z
1	0.75000	0.25000	0.50000
2	0.25000	0.75000	0.50000

Atom	x	y	z
1	0.75000	0.25000	0.00000
2	0.25000	0.75000	0.00000

Atom	x	y	z
1	0.25000	0.25000	0.00610
2	0.75000	0.75000	0.99390

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.25000	0.25000	0.2794(9)	2	0,0,m_z	0.0	0.0	2.9(1)	2.90
Mn2	Mn	0.25000	0.25000	0.7486(9)	2	0,0,m_z	0.0	0.0	-3.9(1)	3.90

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.27940	0,0,m_z	0.00000	0.00000	2.90000
2	0.75000	0.75000	0.72060	0,0,m_z	0.00000	0.00000	2.90000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.74860	0,0,m_z	0.00000	0.00000	-3.90000
2	0.75000	0.75000	0.25140	0,0,m_z	0.00000	0.00000	-3.90000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3+	1	1	primary	2
