Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,-z,+1	{ -1 \| 0 }
3	-x+1/4,-y+1/4,z,-1	{ 2'₀₀₁ \| 1/4 1/4 0 }
4	x+1/4,y+1/4,-z,-1	{ m'₀₀₁ \| 1/4 1/4 0 }
(0,1/2,1/2) + set click here to show and hide
5	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
6	-x,-y+1/2,-z+1/2,+1	{ -1 \| 0 1/2 1/2 }
7	-x+1/4,-y+3/4,z+1/2,-1	{ 2'₀₀₁ \| 1/4 3/4 1/2 }
8	x+1/4,y+3/4,-z+1/2,-1	{ m'₀₀₁ \| 1/4 3/4 1/2 }
(1/2,0,1/2) + set click here to show and hide
9	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
10	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
11	-x+3/4,-y+1/4,z+1/2,-1	{ 2'₀₀₁ \| 3/4 1/4 1/2 }
12	x+3/4,y+1/4,-z+1/2,-1	{ m'₀₀₁ \| 3/4 1/4 1/2 }
(1/2,1/2,0) + set click here to show and hide
13	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
14	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
15	-x+3/4,-y+3/4,z,-1	{ 2'₀₀₁ \| 3/4 3/4 0 }
16	x+3/4,y+3/4,-z,-1	{ m'₀₀₁ \| 3/4 3/4 0 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,-z,+1	-1
3	-x,-y,z,-1	2'₀₀₁
4	x,y,-z,-1	m'₀₀₁

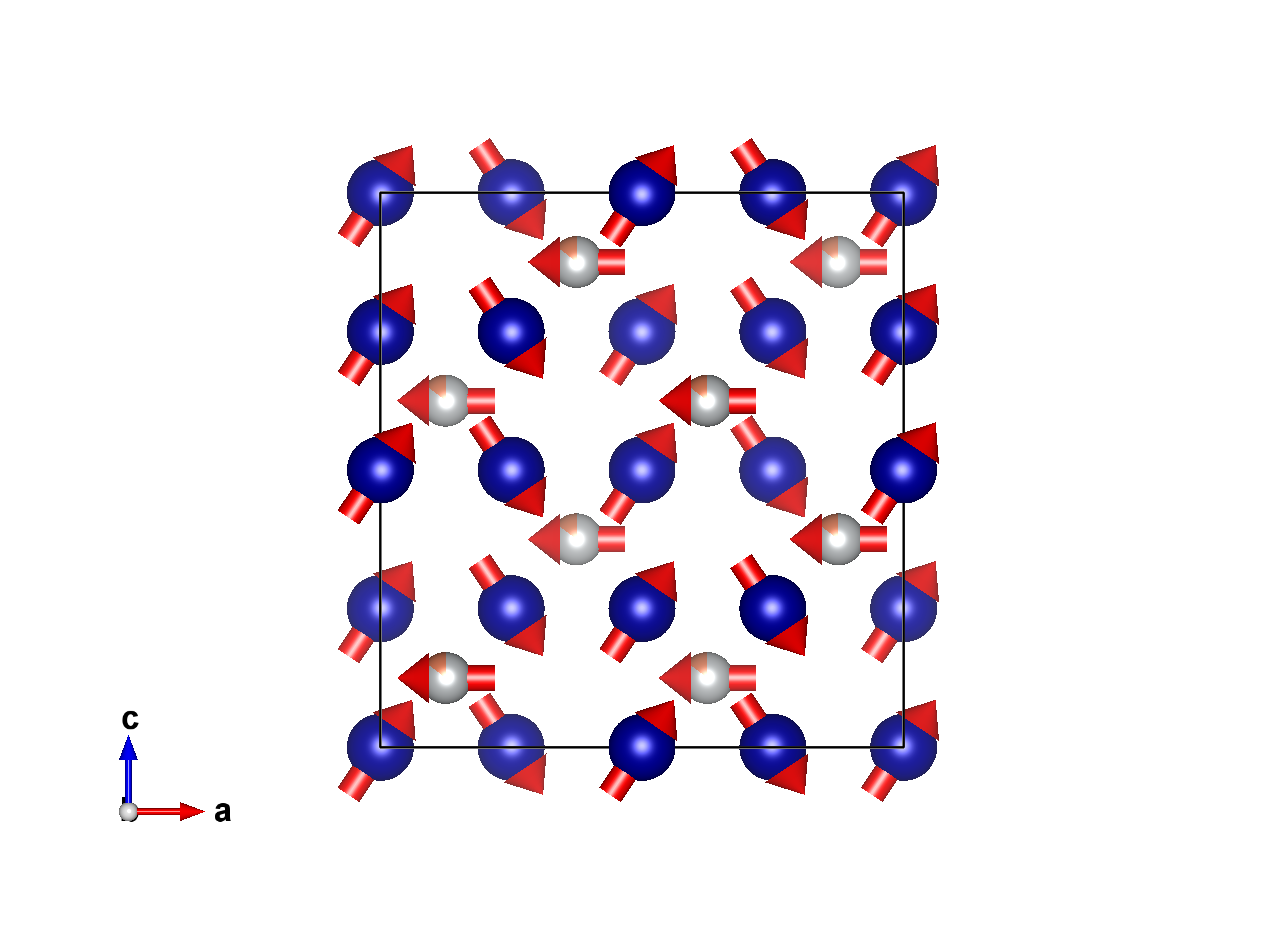

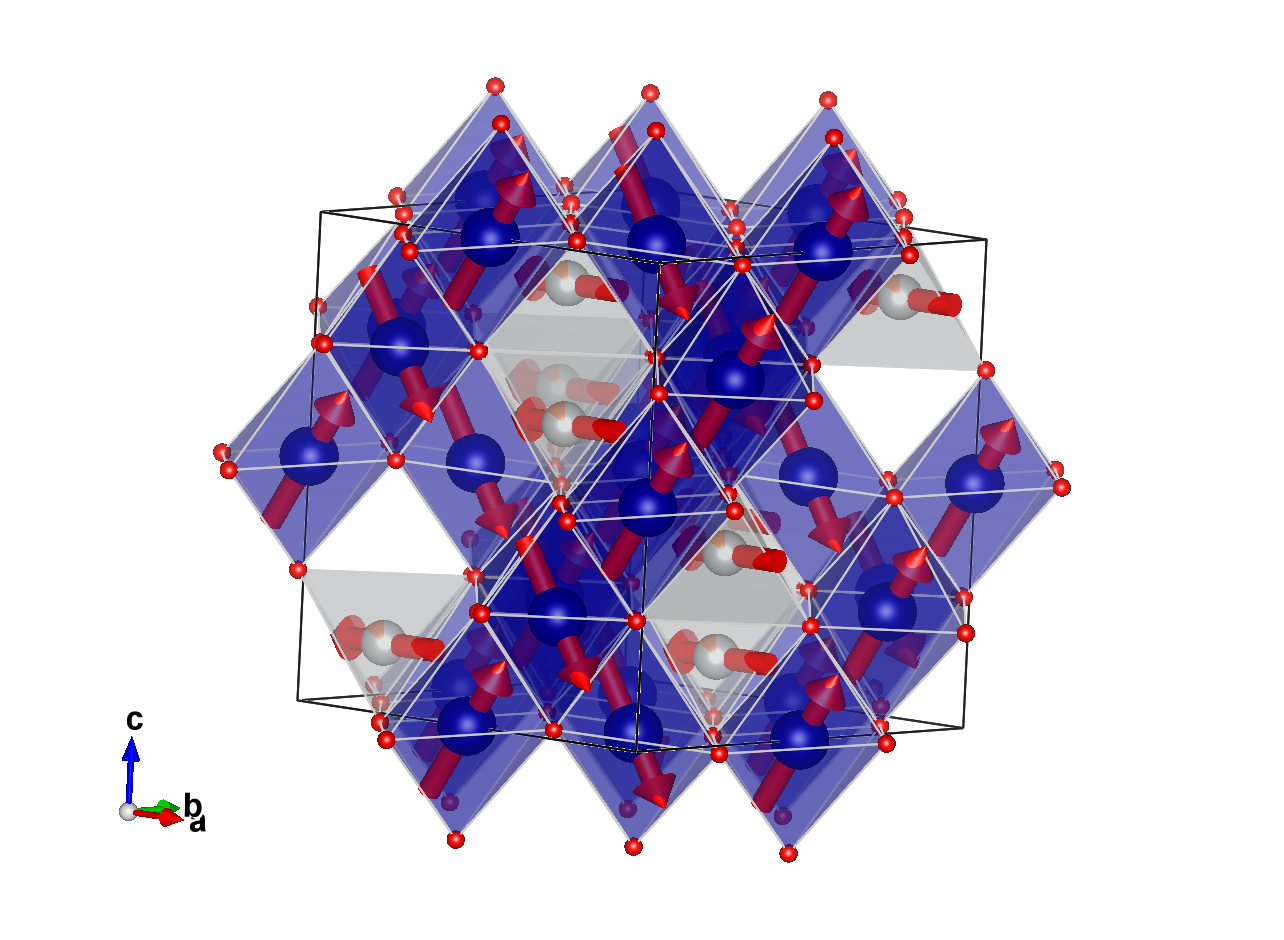

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Ni1	Ni	0.12500	0.12500	0.12500	0.85	8	m_x,m_y,0	-1.88(15)	0.0	1.88
Cu1	Cu	0.12500	0.12500	0.12500	0.15	8	m_x,m_y,0	-1.88(15)	0.0	1.88
Cr1_1	Cr	0.50000	0.50000	0.50000	1	8	m_x,m_y,m_z	1.23(10)	1.83(4)	2.20
Cr1_2	Cr	0.25000	0.50000	0.25000	1	8	m_x,m_y,m_z	1.23(7)	-1.83(4)	2.20

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
O1_1	O	0.2557(2)	0.2615(2)	0.2676(2)	1	16
O1_2	O	0.2557(2)	-0.0115(2)	-0.0176(2)	1	16

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.12500	0.12500	m_x,m_y,0	-1.88000	0.00000	0.00000
2	0.87500	0.87500	0.87500	m_x,m_y,0	-1.88000	0.00000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.12500	0.62500	0.62500	m_x,m_y,0	-1.88000	0.00000	0.00000
4	0.87500	0.37500	0.37500	m_x,m_y,0	-1.88000	0.00000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.62500	0.12500	0.62500	m_x,m_y,0	-1.88000	0.00000	0.00000
6	0.37500	0.87500	0.37500	m_x,m_y,0	-1.88000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
7	0.62500	0.62500	0.12500	m_x,m_y,0	-1.88000	0.00000	0.00000
8	0.37500	0.37500	0.87500	m_x,m_y,0	-1.88000	0.00000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cu1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.12500	0.12500	m_x,m_y,0	-1.88000	0.00000	0.00000
2	0.87500	0.87500	0.87500	m_x,m_y,0	-1.88000	0.00000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.12500	0.62500	0.62500	m_x,m_y,0	-1.88000	0.00000	0.00000
4	0.87500	0.37500	0.37500	m_x,m_y,0	-1.88000	0.00000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.62500	0.12500	0.62500	m_x,m_y,0	-1.88000	0.00000	0.00000
6	0.37500	0.87500	0.37500	m_x,m_y,0	-1.88000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
7	0.62500	0.62500	0.12500	m_x,m_y,0	-1.88000	0.00000	0.00000
8	0.37500	0.37500	0.87500	m_x,m_y,0	-1.88000	0.00000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.50000	0.50000	m_x,m_y,m_z	1.23000	0.00000	1.83000
2	0.75000	0.75000	0.50000	m_x,m_y,-m_z	1.23000	0.00000	-1.83000
(0,1/2,1/2) + set click here to show and hide
3	0.50000	0.00000	0.00000	m_x,m_y,m_z	1.23000	0.00000	1.83000
4	0.75000	0.25000	0.00000	m_x,m_y,-m_z	1.23000	0.00000	-1.83000
(1/2,0,1/2) + set click here to show and hide
5	0.00000	0.50000	0.00000	m_x,m_y,m_z	1.23000	0.00000	1.83000
6	0.25000	0.75000	0.00000	m_x,m_y,-m_z	1.23000	0.00000	-1.83000
(1/2,1/2,0) + set click here to show and hide
7	0.00000	0.00000	0.50000	m_x,m_y,m_z	1.23000	0.00000	1.83000
8	0.25000	0.25000	0.50000	m_x,m_y,-m_z	1.23000	0.00000	-1.83000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.50000	0.25000	m_x,m_y,m_z	1.23000	0.00000	-1.83000
2	0.00000	0.75000	0.25000	m_x,m_y,-m_z	1.23000	0.00000	1.83000
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.00000	0.75000	m_x,m_y,m_z	1.23000	0.00000	-1.83000
4	0.00000	0.25000	0.75000	m_x,m_y,-m_z	1.23000	0.00000	1.83000
(1/2,0,1/2) + set click here to show and hide
5	0.75000	0.50000	0.75000	m_x,m_y,m_z	1.23000	0.00000	-1.83000
6	0.50000	0.75000	0.75000	m_x,m_y,-m_z	1.23000	0.00000	1.83000
(1/2,1/2,0) + set click here to show and hide
7	0.75000	0.00000	0.25000	m_x,m_y,m_z	1.23000	0.00000	-1.83000
8	0.50000	0.25000	0.25000	m_x,m_y,-m_z	1.23000	0.00000	1.83000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Atom	x	y	z
1	0.25570	0.26150	0.26760
2	0.74430	0.73850	0.73240
3	0.99430	0.98850	0.26760
4	0.50570	0.51150	0.73240
(0,1/2,1/2) + set click here to show and hide
5	0.25570	0.76150	0.76760
6	0.74430	0.23850	0.23240
7	0.99430	0.48850	0.76760
8	0.50570	0.01150	0.23240
(1/2,0,1/2) + set click here to show and hide
9	0.75570	0.26150	0.76760
10	0.24430	0.73850	0.23240
11	0.49430	0.98850	0.76760
12	0.00570	0.51150	0.23240
(1/2,1/2,0) + set click here to show and hide
13	0.75570	0.76150	0.26760
14	0.24430	0.23850	0.73240
15	0.49430	0.48850	0.26760
16	0.00570	0.01150	0.73240

Set of atoms in the unit cell related by symmetry with the atom O1_2:

Atom	x	y	z
1	0.25570	0.98850	0.98240
2	0.74430	0.01150	0.01760
3	0.99430	0.26150	0.98240
4	0.50570	0.23850	0.01760
(0,1/2,1/2) + set click here to show and hide
5	0.25570	0.48850	0.48240
6	0.74430	0.51150	0.51760
7	0.99430	0.76150	0.48240
8	0.50570	0.73850	0.51760
(1/2,0,1/2) + set click here to show and hide
9	0.75570	0.98850	0.48240
10	0.24430	0.01150	0.51760
11	0.49430	0.26150	0.48240
12	0.00570	0.23850	0.51760
(1/2,1/2,0) + set click here to show and hide
13	0.75570	0.48850	0.98240
14	0.24430	0.51150	0.01760
15	0.49430	0.76150	0.98240
16	0.00570	0.73850	0.01760

[Hide]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Ni1	Ni	0.12500	0.12500	0.12500	0.85	8	m_x,m_y,0	-1.88(15)	0.0	1.88
Cu1	Cu	0.12500	0.12500	0.12500	0.15	8	m_x,m_y,0	-1.88(15)	0.0	1.88
Cr1_1	Cr	0.50000	0.50000	0.50000	1	8	m_x,m_y,m_z	1.23(10)	1.83(4)	2.20
Cr1_2	Cr	0.25000	0.50000	0.25000	1	8	m_x,m_y,m_z	1.23(7)	-1.83(4)	2.20

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:
