MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.33333	0.00000	0.25000	6	m_x,0,0	1.37(5)	0.0	0.0	1.37

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Te1_1	Te	0.00000	0.00000	0.25000	2
Te1_2	Te	0.33333	0.66667	0.25000	4
O1_1	O	-0.08800	0.78580	0.63779	12
O1_2	O	0.24533	0.45247	0.63779	12
O1_3	O	0.57867	0.11913	0.63779	12
Li1	Li	0.33333	0.33333	0.04840	12

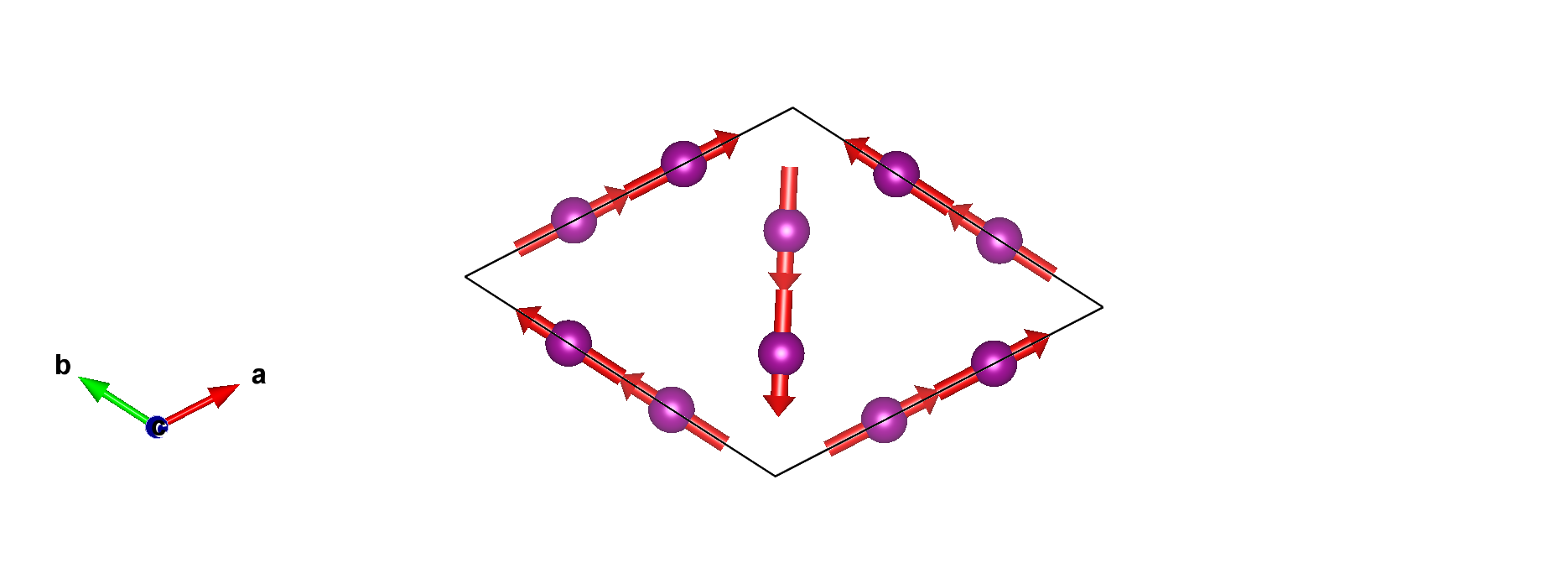

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.33333	0.00000	0.25000	m_x,0,0	1.37000	0.00000
2	0.00000	0.33333	0.25000	0,m_x,0	0.00000	1.37000
3	0.66667	0.66667	0.25000	-m_x,-m_x,0	-1.37000	-1.37000
4	0.66667	0.00000	0.75000	m_x,0,0	1.37000	0.00000
5	0.00000	0.66667	0.75000	0,m_x,0	0.00000	1.37000
6	0.33333	0.33333	0.75000	-m_x,-m_x,0	-1.37000	-1.37000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Te1_1:

Atom	x	y	z
1	0.00000	0.00000	0.25000
2	0.00000	0.00000	0.75000

Set of atoms in the unit cell related by symmetry with the atom Te1_2:

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Set of atoms in the unit cell related by symmetry with the atom O1_2:

Set of atoms in the unit cell related by symmetry with the atom O1_3:

Set of atoms in the unit cell related by symmetry with the atom Li1:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.33333	0.00000	0.25000	6	m_x,0,0	1.37(5)	0.0	0.0	1.37

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mK1	2	1	special	primary	1
