MAGNDATA: A Collection of magnetic structures with portable cif-type files

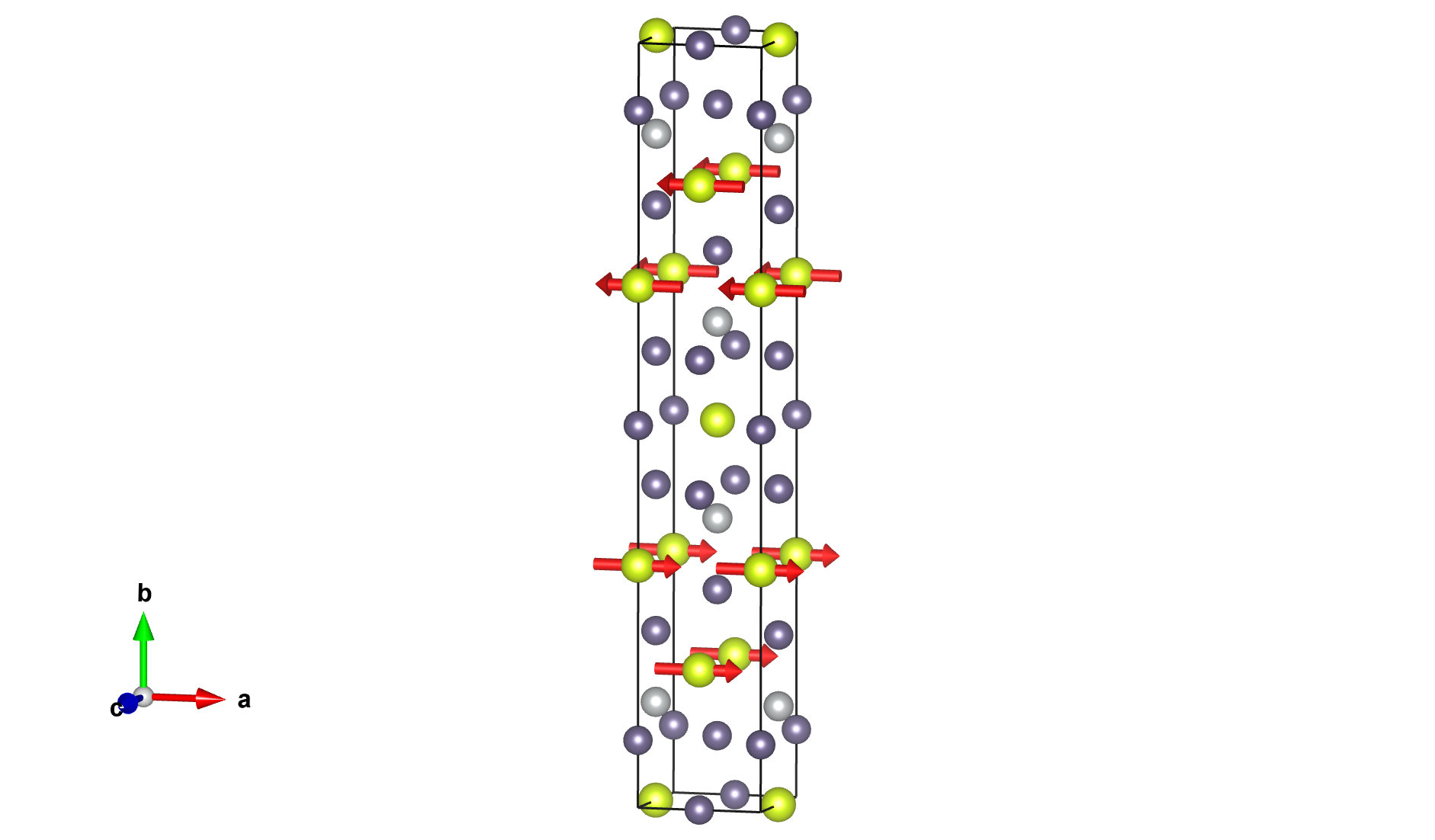

Magnetic structure with all atoms

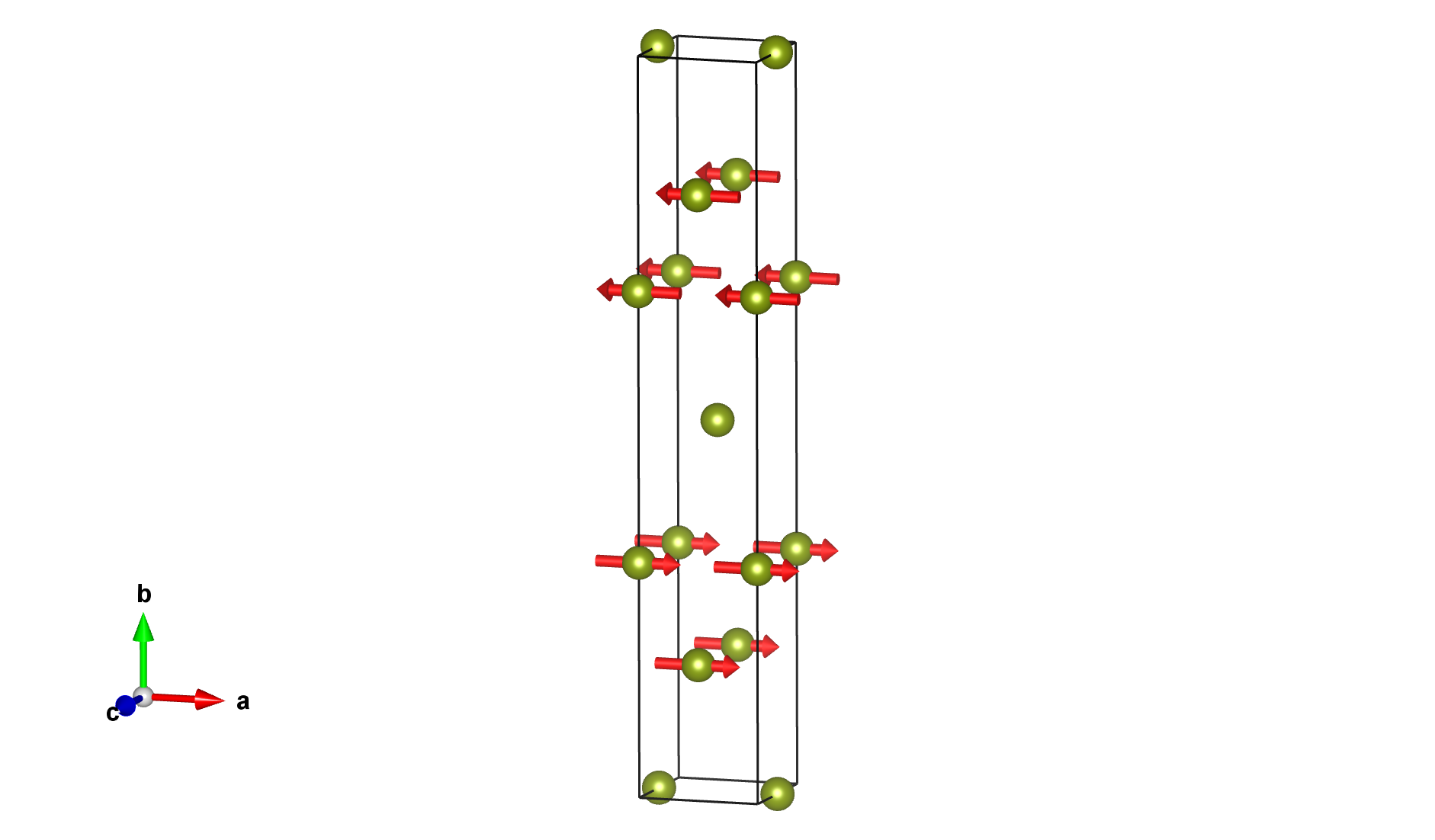

Magnetic structure with only magnetic atoms

Reference: L. Durivault, F. Bouree, B. Chevalier, G. Andre, J. Etourneau and O. Isnard, Journal of Magnetism and Magnetic Materials (2001) 232 139-146.
DOI: 10.1016/s0304-8853(01)00189-5
Atomic positions from: same reference

Parent space group (paramagnetic phase): Cmmm (#65)
Propagation vector: k1 (1, 0, 0)

Transition Temperature: 7.2 K
Experiment Temperature: 1.4 K

Lattice parameters of the magnetic unit cell:
4.2327 25.5517 4.2896 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P_Cmmn (#59.415) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;1/4,1/4,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: mmm.1' (8.2.25)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.00000	0.00000	0.50000	2	0,0,0	0.0	0.0	0.0	0.00
Ce2	Ce	0.00000	0.31690	0.00000	4	m_x,0,0	1.98(2)	0.0	0.0	1.98

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. small irrep	dim. full irrep	action	number of modes
mY2-	1	1	primary	1

Comments:

NPD
Position structure from a measurement at 300K

Comments (symmetry):

1k magnetic structure
k-maximal magnetic symmetry (6 possible)
1-dim irrep as primary
