MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y,-z,+1	{ 2₀₁₀ \| 0 }
3	x,-y,-z+1/2,+1	{ 2₁₀₀ \| 0 0 1/2 }
4	-x,-y,z+1/2,+1	{ 2₀₀₁ \| 0 0 1/2 }
5	-x,-y,-z,+1	{ -1 \| 0 }
6	x,-y,z,+1	{ m₀₁₀ \| 0 }
7	-x,y,z+1/2,+1	{ m₁₀₀ \| 0 0 1/2 }
8	x,y,-z+1/2,+1	{ m₀₀₁ \| 0 0 1/2 }
(1/2,1/2,0) + set click here to show and hide
9	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
10	-x+1/2,y+1/2,-z,+1	{ 2₀₁₀ \| 1/2 1/2 0 }
11	x+1/2,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 1/2 1/2 1/2 }
12	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
13	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
14	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
15	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
16	x+1/2,y+1/2,-z+1/2,+1	{ m₀₀₁ \| 1/2 1/2 1/2 }
(0,0,1/2)' + set click here to show and hide
17	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
18	-x,y,-z+1/2,-1	{ 2'₀₁₀ \| 0 0 1/2 }
19	x,-y,-z,-1	{ 2'₁₀₀ \| 0 }
20	-x,-y,z,-1	{ 2'₀₀₁ \| 0 }
21	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
22	x,-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
23	-x,y,z,-1	{ m'₁₀₀ \| 0 }
24	x,y,-z,-1	{ m'₀₀₁ \| 0 }
(1/2,1/2,1/2)' + set click here to show and hide
25	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
26	-x+1/2,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 1/2 1/2 }
27	x+1/2,-y+1/2,-z,-1	{ 2'₁₀₀ \| 1/2 1/2 0 }
28	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
29	-x+1/2,-y+1/2,-z+1/2,-1	{ -1' \| 1/2 1/2 1/2 }
30	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }
31	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }
32	x+1/2,y+1/2,-z,-1	{ m'₀₀₁ \| 1/2 1/2 0 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	x,-y,-z,+1	2₁₀₀
4	-x,-y,z,+1	2₀₀₁
5	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
7	-x,y,z,+1	m₁₀₀
8	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,y,-z,-1	2'₀₁₀
11	x,-y,-z,-1	2'₁₀₀
12	-x,-y,z,-1	2'₀₀₁
13	-x,-y,-z,-1	-1'
14	x,-y,z,-1	m'₀₁₀
15	-x,y,z,-1	m'₁₀₀
16	x,y,-z,-1	m'₀₀₁

[Hide]

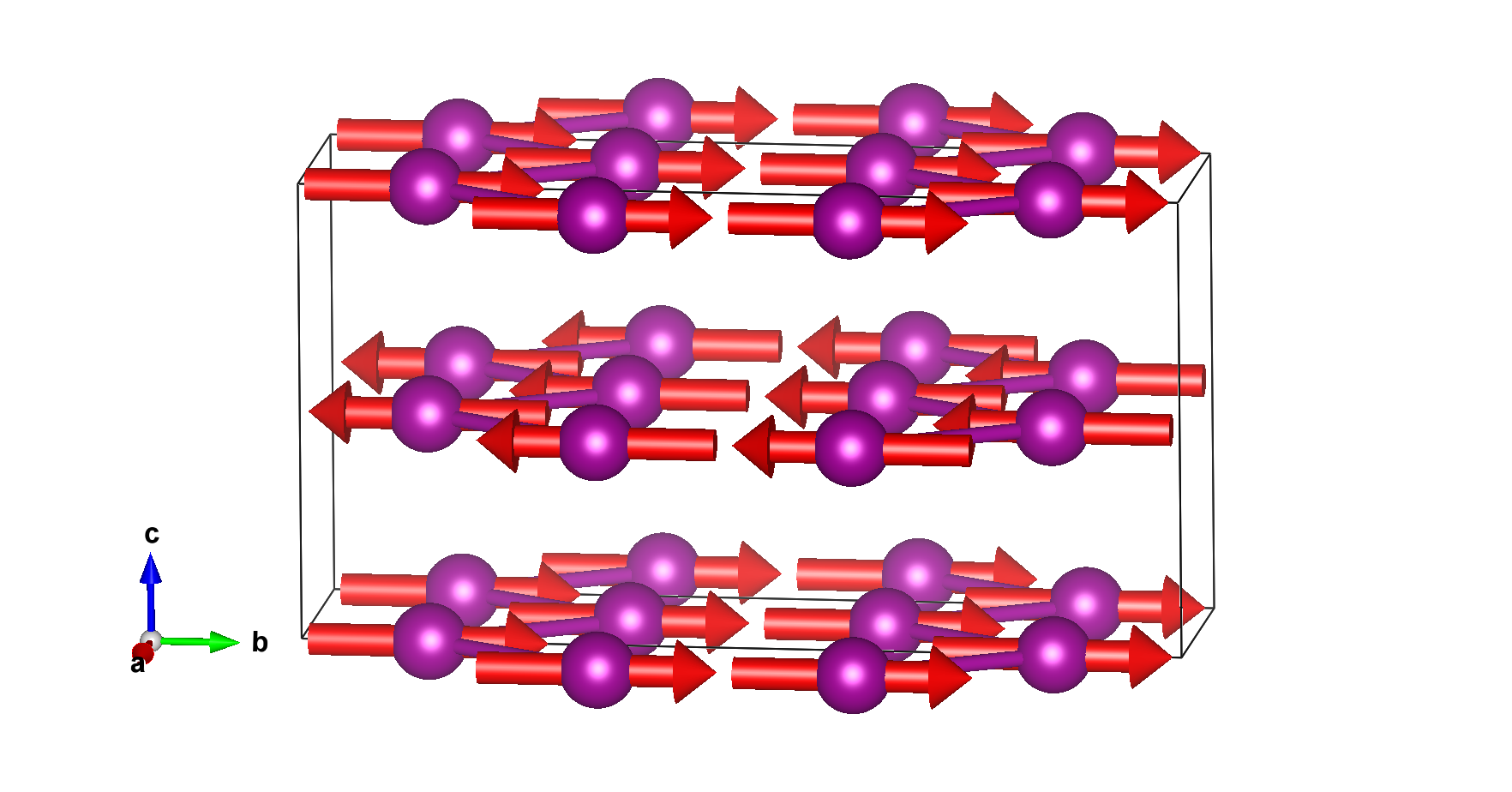

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.85470	0.00000	8	0,m_y,0	0.0	0.71(2)	0.0	0.71

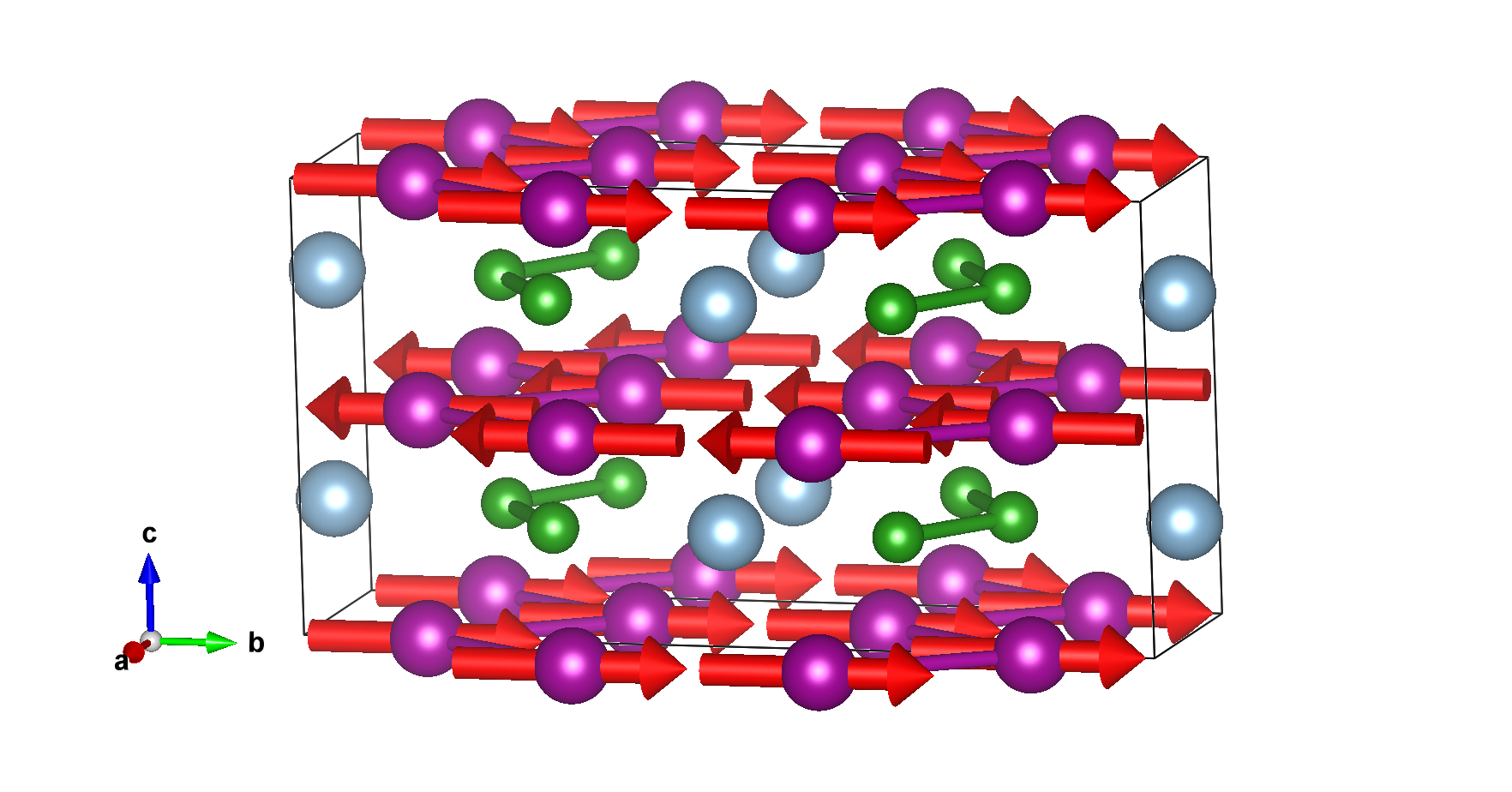

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Al1	Al	0.50000	0.00000	0.25000	4
B1	B	0.50000	0.20290	0.25000	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.85470	0.00000	0,m_y,0	0.00000	0.71000	0.00000
2	0.00000	0.14530	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.35470	0.00000	0,m_y,0	0.00000	0.71000	0.00000
4	0.50000	0.64530	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.85470	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
6	0.00000	0.14530	0.00000	0,m_y,0	0.00000	0.71000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
7	0.50000	0.35470	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
8	0.50000	0.64530	0.00000	0,m_y,0	0.00000	0.71000	0.00000

Atom	x	y	z
1	0.50000	0.00000	0.25000
(1/2,1/2,0) + set click here to show and hide
2	0.00000	0.50000	0.25000
(0,0,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.75000
(1/2,1/2,1/2)' + set click here to show and hide
4	0.00000	0.50000	0.75000

Atom	x	y	z
1	0.50000	0.20290	0.25000
2	0.50000	0.79710	0.25000
(1/2,1/2,0) + set click here to show and hide
3	0.00000	0.70290	0.25000
4	0.00000	0.29710	0.25000
(0,0,1/2)' + set click here to show and hide
5	0.50000	0.20290	0.75000
6	0.50000	0.79710	0.75000
(1/2,1/2,1/2)' + set click here to show and hide
7	0.00000	0.70290	0.75000
8	0.00000	0.29710	0.75000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.85470	0.00000	8	0,m_y,0	0.0	0.71(2)	0.0	0.71

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.85470	0.00000	0,m_y,0	0.00000	0.71000	0.00000
2	0.00000	0.14530	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.35470	0.00000	0,m_y,0	0.00000	0.71000	0.00000
4	0.50000	0.64530	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.85470	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
6	0.00000	0.14530	0.00000	0,m_y,0	0.00000	0.71000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
7	0.50000	0.35470	0.50000	0,-m_y,0	0.00000	-0.71000	0.00000
8	0.50000	0.64530	0.00000	0,m_y,0	0.00000	0.71000	0.00000

label	dim. small irrep	dim. full irrep	action	number of modes
mZ4+	1	1	primary	1
