MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x-y,-y,-z,+1	{ 2₁₀₀ \| 0 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	-x+y,y,z,+1	{ m₁₀₀ \| 0 }
(1/3,2/3,1/3) + set click here to show and hide
5	x+1/3,y+2/3,z+1/3,+1	{ 1 \| 1/3 2/3 1/3 }
6	x-y+1/3,-y+2/3,-z+1/3,+1	{ 2₁₀₀ \| 1/3 2/3 1/3 }
7	-x+1/3,-y+2/3,-z+1/3,+1	{ -1 \| 1/3 2/3 1/3 }
8	-x+y+1/3,y+2/3,z+1/3,+1	{ m₁₀₀ \| 1/3 2/3 1/3 }
(2/3,1/3,2/3) + set click here to show and hide
9	x+2/3,y+1/3,z+2/3,+1	{ 1 \| 2/3 1/3 2/3 }
10	x-y+2/3,-y+1/3,-z+2/3,+1	{ 2₁₀₀ \| 2/3 1/3 2/3 }
11	-x+2/3,-y+1/3,-z+2/3,+1	{ -1 \| 2/3 1/3 2/3 }
12	-x+y+2/3,y+1/3,z+2/3,+1	{ m₁₀₀ \| 2/3 1/3 2/3 }
(0,0,1/2)' + set click here to show and hide
13	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
14	x-y,-y,-z+1/2,-1	{ 2'₁₀₀ \| 0 0 1/2 }
15	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
16	-x+y,y,z+1/2,-1	{ m'₁₀₀ \| 0 0 1/2 }
(1/3,2/3,5/6)' + set click here to show and hide
17	x+1/3,y+2/3,z+5/6,-1	{ 1' \| 1/3 2/3 5/6 }
18	x-y+1/3,-y+2/3,-z+5/6,-1	{ 2'₁₀₀ \| 1/3 2/3 5/6 }
19	-x+1/3,-y+2/3,-z+5/6,-1	{ -1' \| 1/3 2/3 5/6 }
20	-x+y+1/3,y+2/3,z+5/6,-1	{ m'₁₀₀ \| 1/3 2/3 5/6 }
(2/3,1/3,1/6)' + set click here to show and hide
21	x+2/3,y+1/3,z+1/6,-1	{ 1' \| 2/3 1/3 1/6 }
22	x-y+2/3,-y+1/3,-z+1/6,-1	{ 2'₁₀₀ \| 2/3 1/3 1/6 }
23	-x+2/3,-y+1/3,-z+1/6,-1	{ -1' \| 2/3 1/3 1/6 }
24	-x+y+2/3,y+1/3,z+1/6,-1	{ m'₁₀₀ \| 2/3 1/3 1/6 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x-y,-y,-z,+1	2₁₀₀
3	-x,-y,-z,+1	-1
4	-x+y,y,z,+1	m₁₀₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	x-y,-y,-z,-1	2'₁₀₀
7	-x,-y,-z,-1	-1'
8	-x+y,y,z,-1	m'₁₀₀

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Eu1	Eu	0.00000	0.00000	0.00000	6	m_x,0,0	5.65(3)	0.0	0.0	5.65

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Sn1	Sn	0.00000	0.00000	0.10560	12
P1	P	0.00000	0.00000	0.20265	12

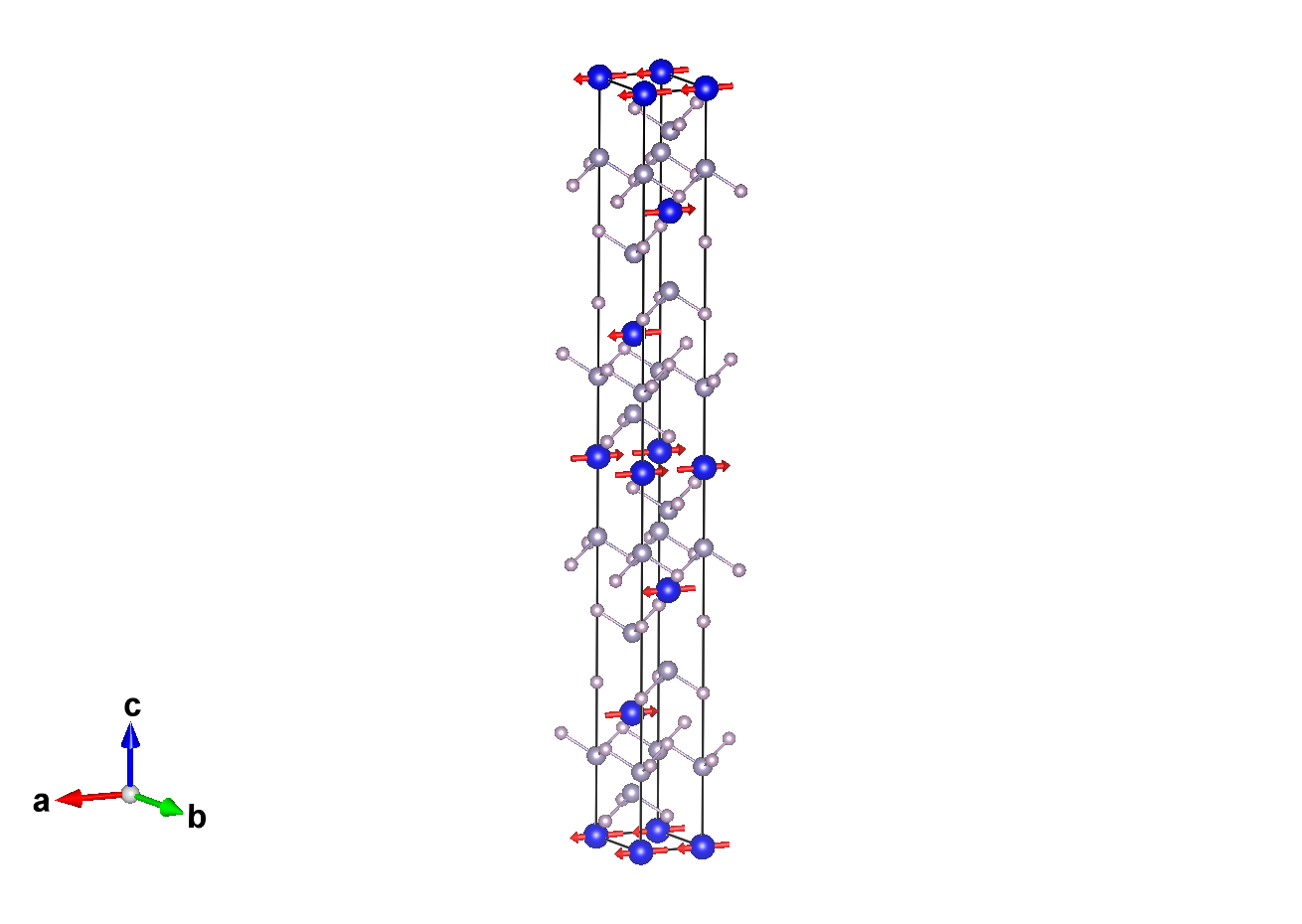

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

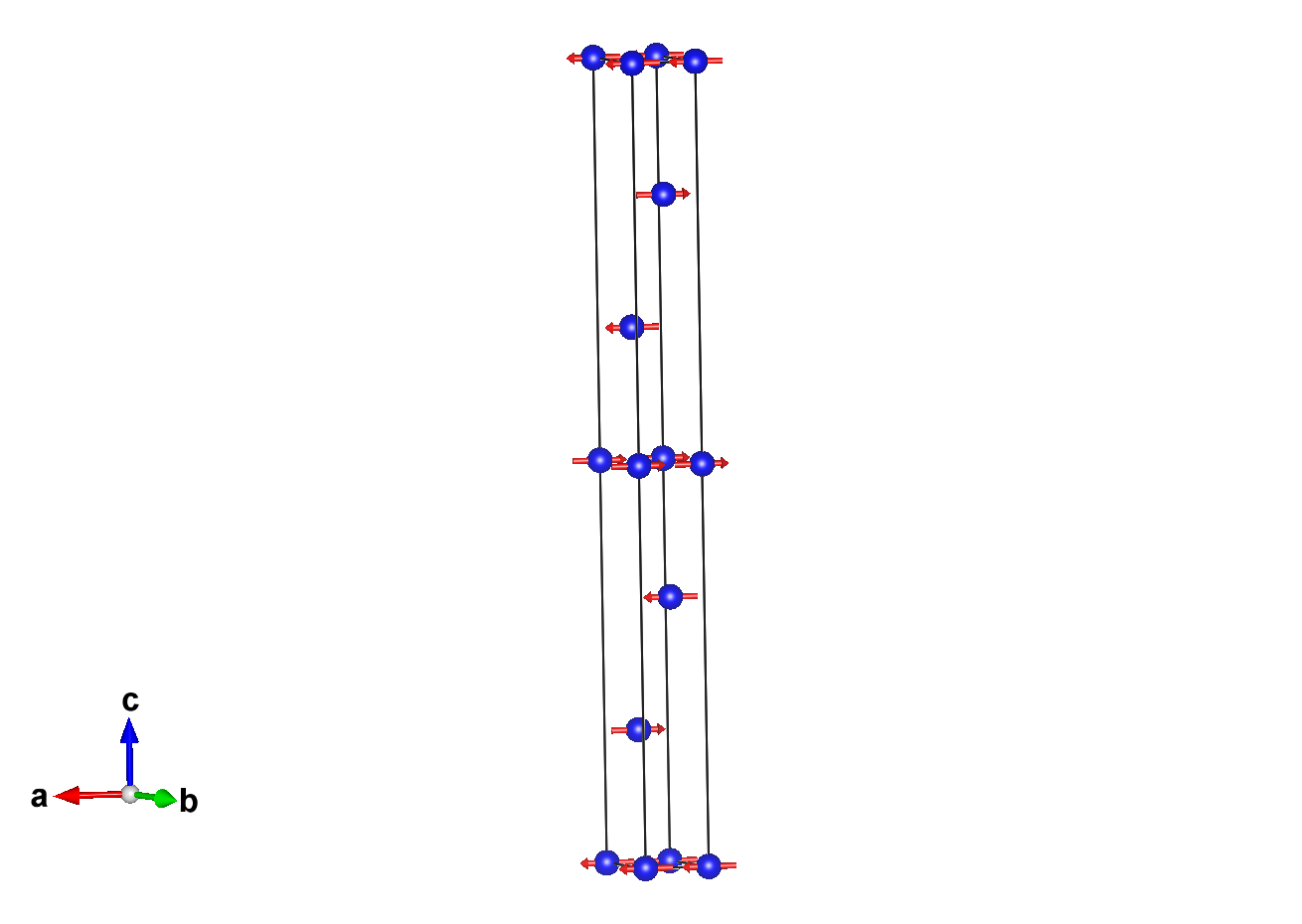

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Eu1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,0,0	5.65000	0.00000	0.00000
(1/3,2/3,1/3) + set click here to show and hide
2	0.33333	0.66667	0.33333	m_x,0,0	5.65000	0.00000	0.00000
(2/3,1/3,2/3) + set click here to show and hide
3	0.66667	0.33333	0.66667	m_x,0,0	5.65000	0.00000	0.00000
(0,0,1/2)' + set click here to show and hide
4	0.00000	0.00000	0.50000	-m_x,0,0	-5.65000	0.00000	0.00000
(1/3,2/3,5/6)' + set click here to show and hide
5	0.33333	0.66667	0.83333	-m_x,0,0	-5.65000	0.00000	0.00000
(2/3,1/3,1/6)' + set click here to show and hide
6	0.66667	0.33333	0.16667	-m_x,0,0	-5.65000	0.00000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Sn1:

Atom	x	y	z
1	0.00000	0.00000	0.10560
2	0.00000	0.00000	0.89440
(1/3,2/3,1/3) + set click here to show and hide
3	0.33333	0.66667	0.43893
4	0.33333	0.66667	0.22773
(2/3,1/3,2/3) + set click here to show and hide
5	0.66667	0.33333	0.77227
6	0.66667	0.33333	0.56107
(0,0,1/2)' + set click here to show and hide
7	0.00000	0.00000	0.60560
8	0.00000	0.00000	0.39440
(1/3,2/3,5/6)' + set click here to show and hide
9	0.33333	0.66667	0.93893
10	0.33333	0.66667	0.72773
(2/3,1/3,1/6)' + set click here to show and hide
11	0.66667	0.33333	0.27227
12	0.66667	0.33333	0.06107

Set of atoms in the unit cell related by symmetry with the atom P1:

Atom	x	y	z
1	0.00000	0.00000	0.20265
2	0.00000	0.00000	0.79735
(1/3,2/3,1/3) + set click here to show and hide
3	0.33333	0.66667	0.53598
4	0.33333	0.66667	0.13068
(2/3,1/3,2/3) + set click here to show and hide
5	0.66667	0.33333	0.86932
6	0.66667	0.33333	0.46402
(0,0,1/2)' + set click here to show and hide
7	0.00000	0.00000	0.70265
8	0.00000	0.00000	0.29735
(1/3,2/3,5/6)' + set click here to show and hide
9	0.33333	0.66667	0.03598
10	0.33333	0.66667	0.63068
(2/3,1/3,1/6)' + set click here to show and hide
11	0.66667	0.33333	0.36932
12	0.66667	0.33333	0.96402

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Eu1	Eu	0.00000	0.00000	0.00000	6	m_x,0,0	5.65(3)	0.0	0.0	5.65

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mT3+	2	2	special	primary	1
