Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
3	x+1/2,-y,-z+1/2,+1	{ 2₁₀₀ \| 1/2 0 1/2 }
4	-x,y+1/2,-z,+1	{ 2₀₁₀ \| 0 1/2 0 }
5	-x,-y,-z+1/2,+1	{ -1 \| 0 0 1/2 }
6	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
7	-x+1/2,y,z,+1	{ m₁₀₀ \| 1/2 0 0 }
8	x,-y+1/2,z+1/2,+1	{ m₀₁₀ \| 0 1/2 1/2 }
(0,0,1/2)' + set click here to show and hide
9	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
10	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
11	x+1/2,-y,-z,-1	{ 2'₁₀₀ \| 1/2 0 0 }
12	-x,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 0 1/2 1/2 }
13	-x,-y,-z,-1	{ -1' \| 0 }
14	x+1/2,y+1/2,-z+1/2,-1	{ m'₀₀₁ \| 1/2 1/2 1/2 }
15	-x+1/2,y,z+1/2,-1	{ m'₁₀₀ \| 1/2 0 1/2 }
16	x,-y+1/2,z,-1	{ m'₀₁₀ \| 0 1/2 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,z,+1	2₀₀₁
3	x,-y,-z,+1	2₁₀₀
4	-x,y,-z,+1	2₀₁₀
5	-x,-y,-z,+1	-1
6	x,y,-z,+1	m₀₀₁
7	-x,y,z,+1	m₁₀₀
8	x,-y,z,+1	m₀₁₀
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,-y,z,-1	2'₀₀₁
11	x,-y,-z,-1	2'₁₀₀
12	-x,y,-z,-1	2'₀₁₀
13	-x,-y,-z,-1	-1'
14	x,y,-z,-1	m'₀₀₁
15	-x,y,z,-1	m'₁₀₀
16	x,-y,z,-1	m'₀₁₀

[Hide]

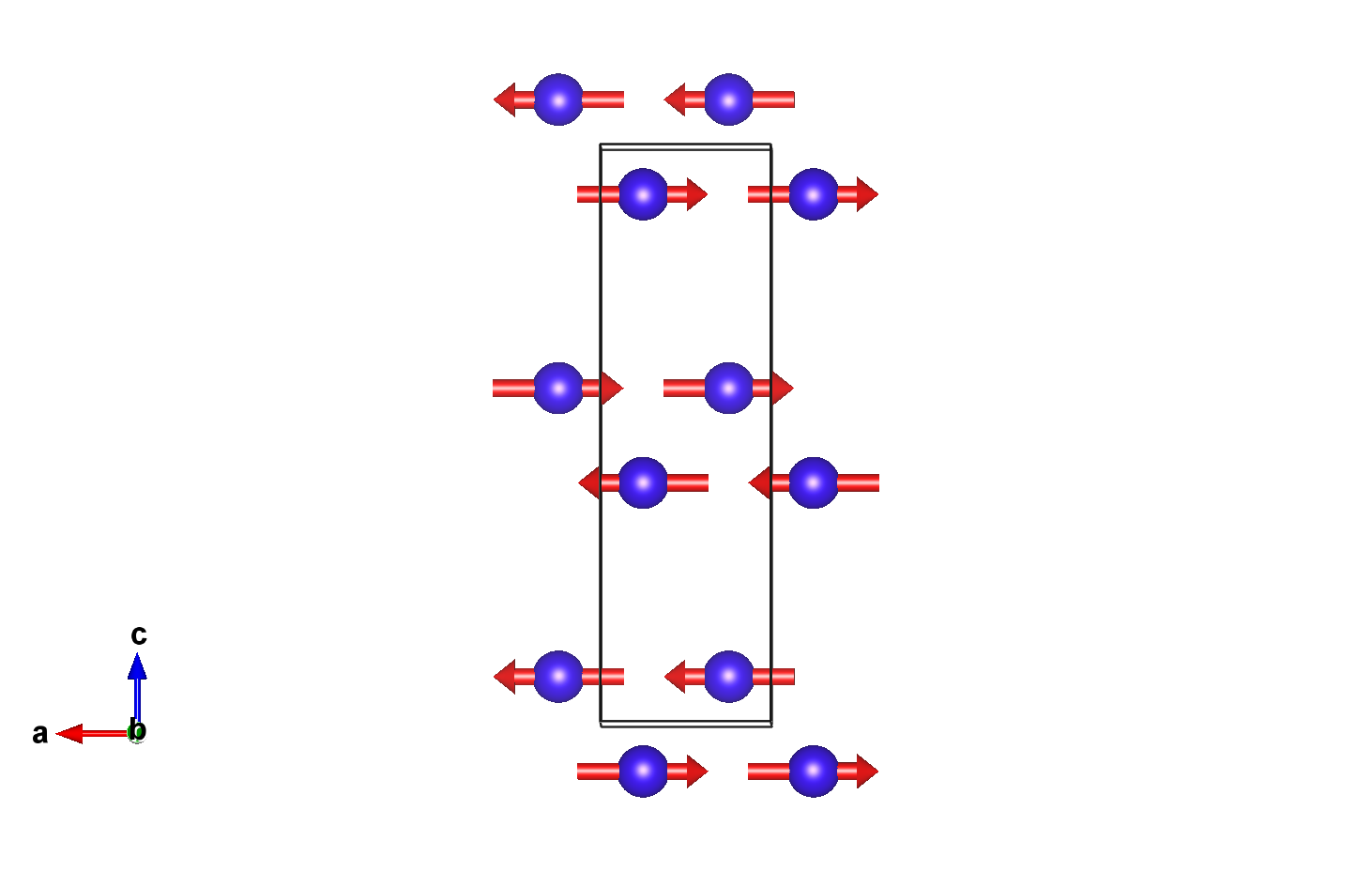

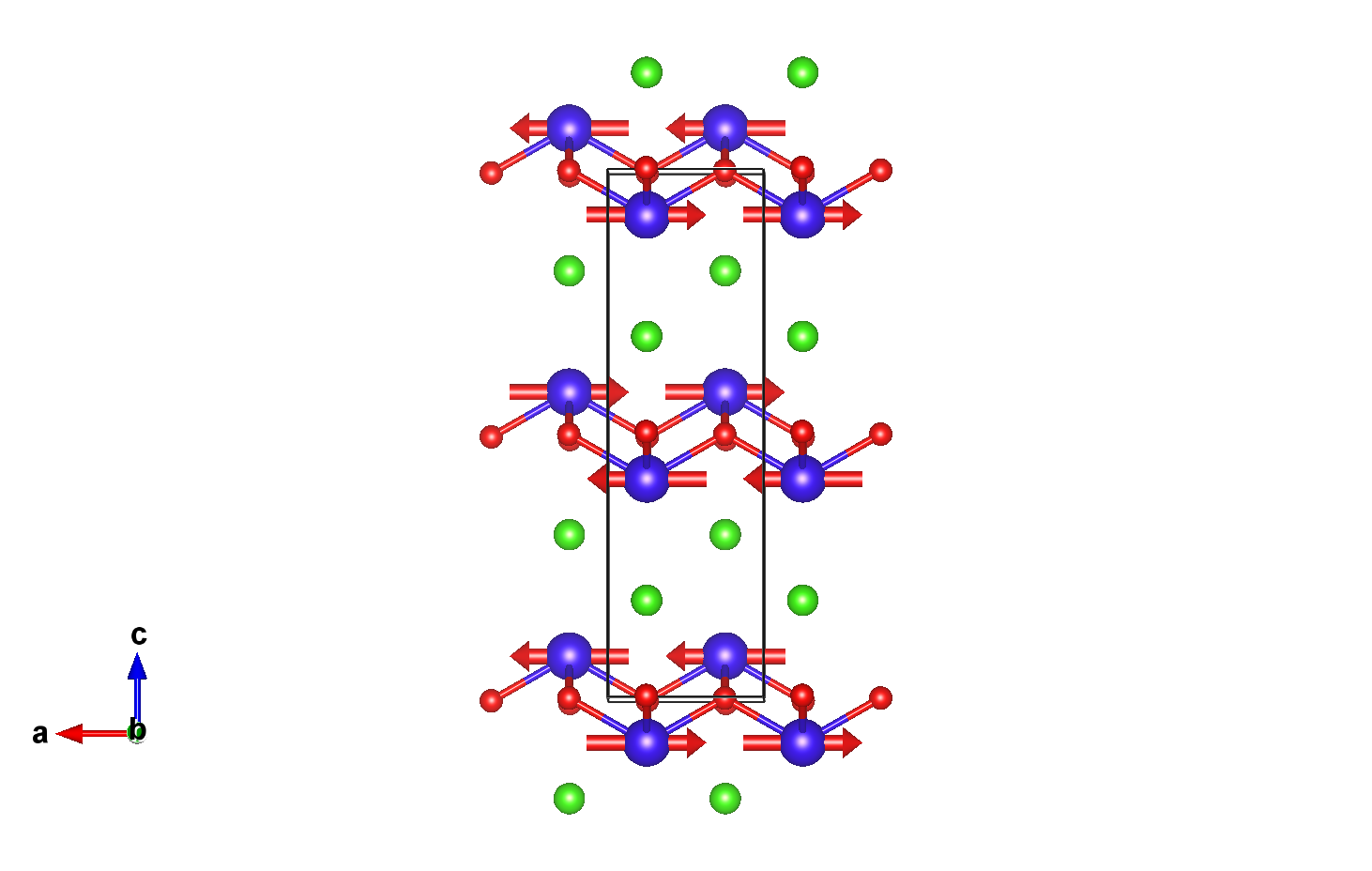

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.25000	0.25000	0.08455	4	m_x,0,0	10.1	0.0	0.0	10.10

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cl1	Cl	0.25000	0.25000	0.31470	4
O1	O	0.75000	0.25000	0.00000	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.08455	m_x,0,0	10.10000	0.00000	0.00000
2	0.75000	0.75000	0.41545	m_x,0,0	10.10000	0.00000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.25000	0.25000	0.58455	-m_x,0,0	-10.10000	0.00000	0.00000
4	0.75000	0.75000	0.91545	-m_x,0,0	-10.10000	0.00000	0.00000

Atom	x	y	z
1	0.25000	0.25000	0.31470
2	0.75000	0.75000	0.18530
(0,0,1/2)' + set click here to show and hide
3	0.25000	0.25000	0.81470
4	0.75000	0.75000	0.68530

Atom	x	y	z
1	0.75000	0.25000	0.00000
2	0.25000	0.75000	0.50000
(0,0,1/2)' + set click here to show and hide
3	0.75000	0.25000	0.50000
4	0.25000	0.75000	0.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.25000	0.25000	0.08455	4	m_x,0,0	10.1	0.0	0.0	10.10

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.08455	m_x,0,0	10.10000	0.00000	0.00000
2	0.75000	0.75000	0.41545	m_x,0,0	10.10000	0.00000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.25000	0.25000	0.58455	-m_x,0,0	-10.10000	0.00000	0.00000
4	0.75000	0.75000	0.91545	-m_x,0,0	-10.10000	0.00000	0.00000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mZ5-	2	2	special	primary	1
