Transformation matrix from the parent setting (a_p,b_p,c_p) to the standard setting of the parent space group (a_pst,b_pst,c_pst):

[Hide]

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/2,-y,-z+3/4,+1	{ 2₁₀₀ \| 1/2 0 3/4 }
3	-x,y+1/2,-z+1/4,+1	{ 2₀₁₀ \| 0 1/2 1/4 }
4	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
5	-x,-y+1/2,-z+1/4,+1	{ -1 \| 0 1/2 1/4 }
6	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
7	x,-y,z,+1	{ m₀₁₀ \| 0 }
8	x+1/2,y,-z+3/4,+1	{ m₀₀₁ \| 1/2 0 3/4 }
(1/2,1/2,1/2)' + set click here to show and hide
9	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
10	x,-y+1/2,-z+1/4,-1	{ 2'₁₀₀ \| 0 1/2 1/4 }
11	-x+1/2,y,-z+3/4,-1	{ 2'₀₁₀ \| 1/2 0 3/4 }
12	-x,-y,z,-1	{ 2'₀₀₁ \| 0 }
13	-x+1/2,-y,-z+3/4,-1	{ -1' \| 1/2 0 3/4 }
14	-x,y,z,-1	{ m'₁₀₀ \| 0 }
15	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }
16	x,y+1/2,-z+1/4,-1	{ m'₀₀₁ \| 0 1/2 1/4 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,y,-z,+1	2₀₁₀
4	-x,-y,z,+1	2₀₀₁
5	-x,-y,-z,+1	-1
6	-x,y,z,+1	m₁₀₀
7	x,-y,z,+1	m₀₁₀
8	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	x,-y,-z,-1	2'₁₀₀
11	-x,y,-z,-1	2'₀₁₀
12	-x,-y,z,-1	2'₀₀₁
13	-x,-y,-z,-1	-1'
14	-x,y,z,-1	m'₁₀₀
15	x,-y,z,-1	m'₀₁₀
16	x,y,-z,-1	m'₀₀₁

[Hide]

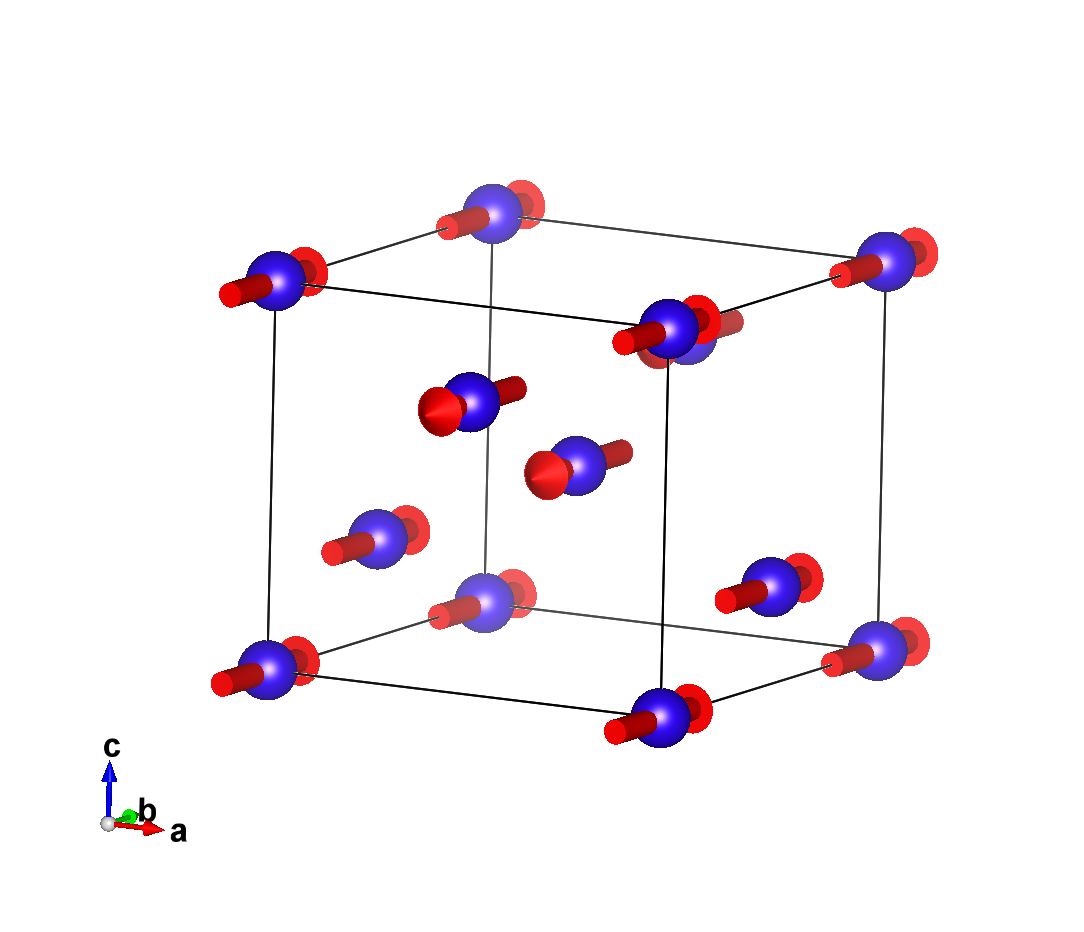

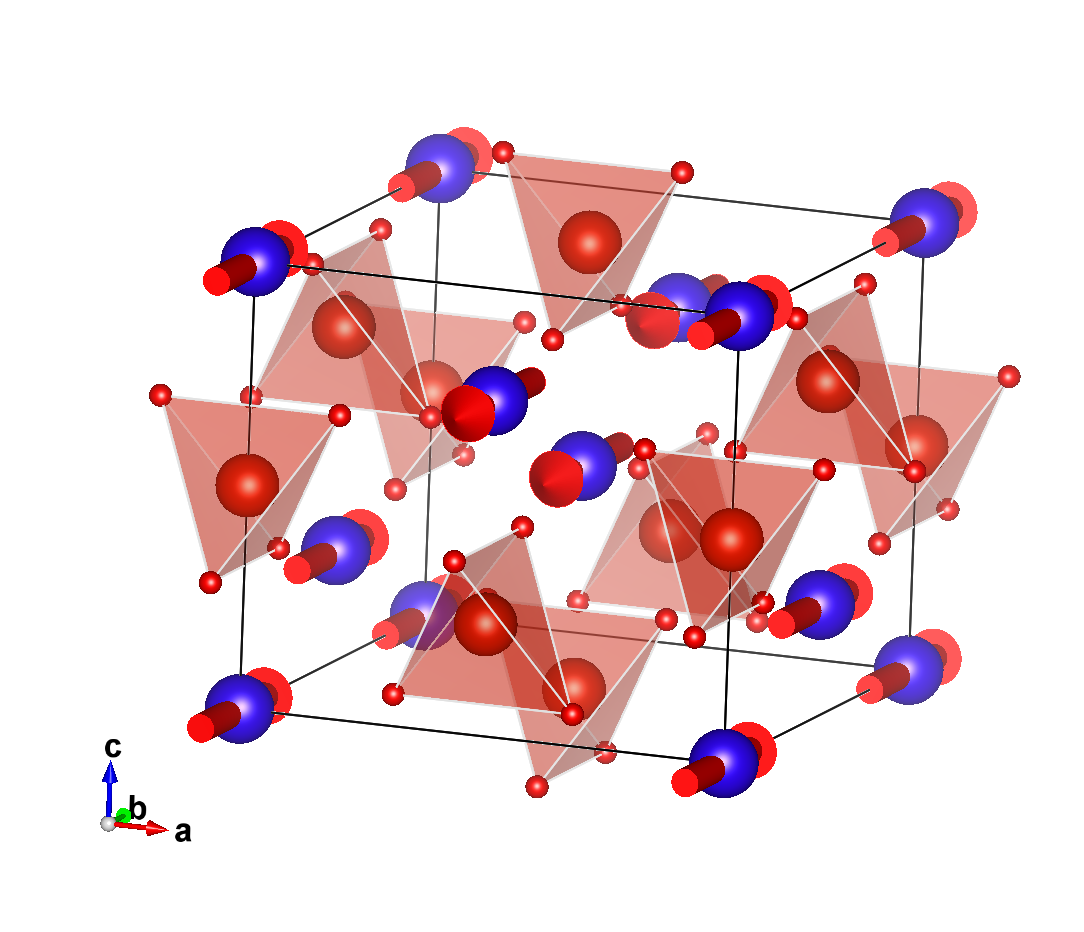

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.00000	0.50000	0.25000	4	0,m_y,0	0.0	9.	0.0	9.00

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
V1	V	0.00000	0.00000	0.50000	4
O1_1	O	0.00000	0.18500	0.32100	8
O1_2	O	0.81500	0.50000	0.57100	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.25000	0,m_y,0	0.00000	9.00000	0.00000
2	0.50000	0.50000	0.50000	0,-m_y,0	0.00000	-9.00000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.75000	0,-m_y,0	0.00000	-9.00000	0.00000
4	0.00000	0.00000	0.00000	0,m_y,0	0.00000	9.00000	0.00000

Atom	x	y	z
1	0.00000	0.00000	0.50000
2	0.50000	0.00000	0.25000
(1/2,1/2,1/2)' + set click here to show and hide
3	0.50000	0.50000	0.00000
4	0.00000	0.50000	0.75000

Atom	x	y	z
1	0.00000	0.18500	0.32100
2	0.50000	0.81500	0.42900
3	0.00000	0.68500	0.92900
4	0.50000	0.31500	0.82100
(1/2,1/2,1/2)' + set click here to show and hide
5	0.50000	0.68500	0.82100
6	0.00000	0.31500	0.92900
7	0.50000	0.18500	0.42900
8	0.00000	0.81500	0.32100

Atom	x	y	z
1	0.81500	0.50000	0.57100
2	0.31500	0.50000	0.17900
3	0.18500	0.00000	0.67900
4	0.68500	0.00000	0.07100
(1/2,1/2,1/2)' + set click here to show and hide
5	0.31500	0.00000	0.07100
6	0.81500	0.00000	0.67900
7	0.68500	0.50000	0.17900
8	0.18500	0.50000	0.57100

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.00000	0.50000	0.25000	4	0,m_y,0	0.0	9.	0.0	9.00

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.25000	0,m_y,0	0.00000	9.00000	0.00000
2	0.50000	0.50000	0.50000	0,-m_y,0	0.00000	-9.00000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.75000	0,-m_y,0	0.00000	-9.00000	0.00000
4	0.00000	0.00000	0.00000	0,m_y,0	0.00000	9.00000	0.00000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mM4	2	2	special	primary	1
