MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y,-z,+1	{ 2₀₁₀ \| 0 }
3	-x+1/2,-y,z,+1	{ 2₀₀₁ \| 1/2 0 0 }
4	x+1/2,-y,-z,+1	{ 2₁₀₀ \| 1/2 0 0 }
5	-x,-y+1/2,-z,+1	{ -1 \| 0 1/2 0 }
6	x,-y+1/2,z,+1	{ m₀₁₀ \| 0 1/2 0 }
7	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
8	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
(0,1/2,0)' + set click here to show and hide
9	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
10	-x,y+1/2,-z,-1	{ 2'₀₁₀ \| 0 1/2 0 }
11	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
12	x+1/2,-y+1/2,-z,-1	{ 2'₁₀₀ \| 1/2 1/2 0 }
13	-x,-y,-z,-1	{ -1' \| 0 }
14	x,-y,z,-1	{ m'₀₁₀ \| 0 }
15	x+1/2,y,-z,-1	{ m'₀₀₁ \| 1/2 0 0 }
16	-x+1/2,y,z,-1	{ m'₁₀₀ \| 1/2 0 0 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	-x,-y,z,+1	2₀₀₁
4	x,-y,-z,+1	2₁₀₀
5	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
7	x,y,-z,+1	m₀₀₁
8	-x,y,z,+1	m₁₀₀
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,y,-z,-1	2'₀₁₀
11	-x,-y,z,-1	2'₀₀₁
12	x,-y,-z,-1	2'₁₀₀
13	-x,-y,-z,-1	-1'
14	x,-y,z,-1	m'₀₁₀
15	x,y,-z,-1	m'₀₀₁
16	-x,y,z,-1	m'₁₀₀

[Hide]

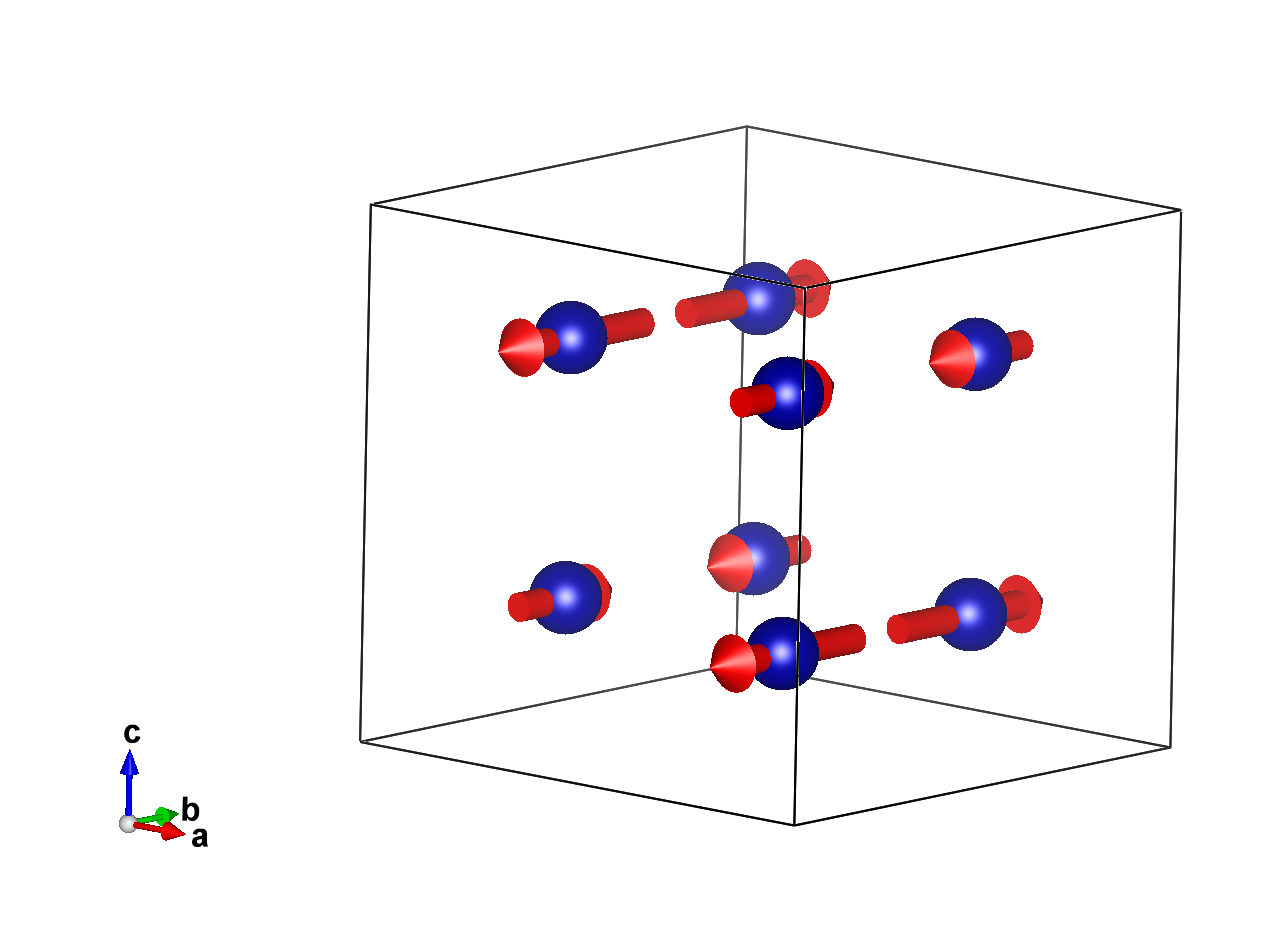

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.25000	0.25000	0.27100	4	0,m_y,0	0.0	2.7(1)	0.0	2.70
Co2	Co	0.25000	0.25000	0.75500	4	0,m_y,0	0.0	-4.2(1)	0.0	4.20

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ba1	Ba	0.00000	0.00000	0.00000	4
Y1	Y	0.00000	0.00000	0.50000	4
O1	O	0.25000	0.25000	0.99400	4
O2	O	0.25000	0.00000	0.68300	4
O3	O	0.25000	0.00000	0.30700	4
O4	O	0.98470	0.25000	0.31050	8

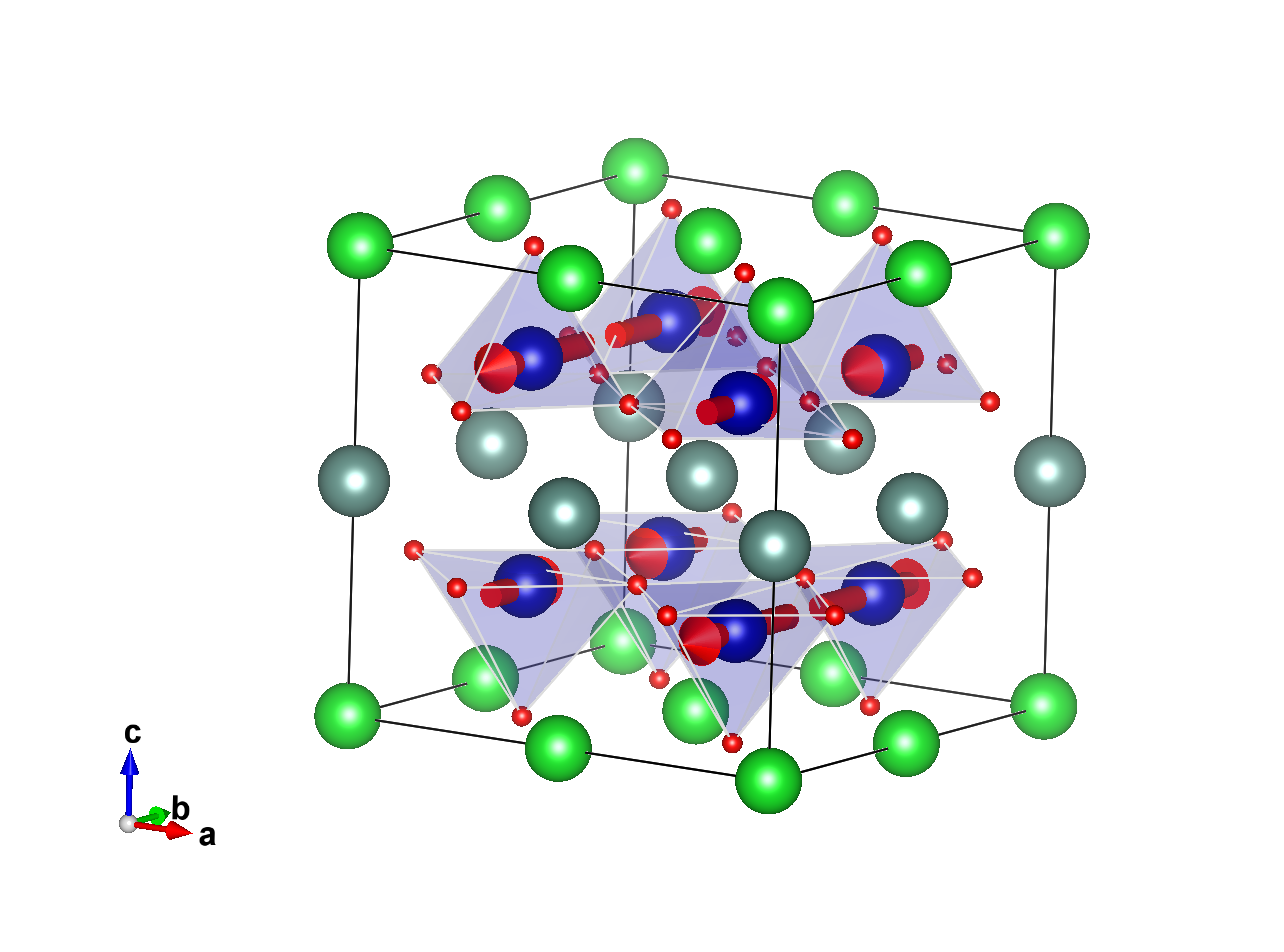

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Co1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.27100	0,m_y,0	0.00000	2.70000	0.00000
2	0.75000	0.25000	0.72900	0,m_y,0	0.00000	2.70000	0.00000
(0,1/2,0)' + set click here to show and hide
3	0.25000	0.75000	0.27100	0,-m_y,0	0.00000	-2.70000	0.00000
4	0.75000	0.75000	0.72900	0,-m_y,0	0.00000	-2.70000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Co2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.75500	0,m_y,0	0.00000	-4.20000	0.00000
2	0.75000	0.25000	0.24500	0,m_y,0	0.00000	-4.20000	0.00000
(0,1/2,0)' + set click here to show and hide
3	0.25000	0.75000	0.75500	0,-m_y,0	0.00000	4.20000	0.00000
4	0.75000	0.75000	0.24500	0,-m_y,0	0.00000	4.20000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ba1:

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.00000	0.00000
(0,1/2,0)' + set click here to show and hide
3	0.00000	0.50000	0.00000
4	0.50000	0.50000	0.00000

Set of atoms in the unit cell related by symmetry with the atom Y1:

Atom	x	y	z
1	0.00000	0.00000	0.50000
2	0.50000	0.00000	0.50000
(0,1/2,0)' + set click here to show and hide
3	0.00000	0.50000	0.50000
4	0.50000	0.50000	0.50000

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.25000	0.25000	0.99400
2	0.75000	0.25000	0.00600
(0,1/2,0)' + set click here to show and hide
3	0.25000	0.75000	0.99400
4	0.75000	0.75000	0.00600

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.25000	0.00000	0.68300
2	0.75000	0.00000	0.31700
(0,1/2,0)' + set click here to show and hide
3	0.25000	0.50000	0.68300
4	0.75000	0.50000	0.31700

Set of atoms in the unit cell related by symmetry with the atom O3:

Atom	x	y	z
1	0.25000	0.00000	0.30700
2	0.75000	0.00000	0.69300
(0,1/2,0)' + set click here to show and hide
3	0.25000	0.50000	0.30700
4	0.75000	0.50000	0.69300

Set of atoms in the unit cell related by symmetry with the atom O4:

Atom	x	y	z
1	0.98470	0.25000	0.31050
2	0.01530	0.25000	0.68950
3	0.51530	0.75000	0.31050
4	0.48470	0.75000	0.68950
(0,1/2,0)' + set click here to show and hide
5	0.98470	0.75000	0.31050
6	0.01530	0.75000	0.68950
7	0.51530	0.25000	0.31050
8	0.48470	0.25000	0.68950

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.25000	0.25000	0.27100	4	0,m_y,0	0.0	2.7(1)	0.0	2.70
Co2	Co	0.25000	0.25000	0.75500	4	0,m_y,0	0.0	-4.2(1)	0.0	4.20
