MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 0 1/2 1/2 }
3	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
4	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
5	-x+1/2,-y+1/2,-z+1/2,+1	{ -1 \| 1/2 1/2 1/2 }
6	x+1/2,-y,z,+1	{ m₀₁₀ \| 1/2 0 0 }
7	-x,y,z+1/2,+1	{ m₁₀₀ \| 0 0 1/2 }
8	x,y+1/2,-z,+1	{ m₀₀₁ \| 0 1/2 0 }
(1/2,1/2,1/2)' + set click here to show and hide
9	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
10	-x+1/2,y,-z,-1	{ 2'₀₁₀ \| 1/2 0 0 }
11	x,-y,-z+1/2,-1	{ 2'₁₀₀ \| 0 0 1/2 }
12	-x,-y+1/2,z,-1	{ 2'₀₀₁ \| 0 1/2 0 }
13	-x,-y,-z,-1	{ -1' \| 0 }
14	x,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 0 1/2 1/2 }
15	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }
16	x+1/2,y,-z+1/2,-1	{ m'₀₀₁ \| 1/2 0 1/2 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	x,-y,-z,+1	2₁₀₀
4	-x,-y,z,+1	2₀₀₁
5	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
7	-x,y,z,+1	m₁₀₀
8	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,y,-z,-1	2'₀₁₀
11	x,-y,-z,-1	2'₁₀₀
12	-x,-y,z,-1	2'₀₀₁
13	-x,-y,-z,-1	-1'
14	x,-y,z,-1	m'₀₁₀
15	-x,y,z,-1	m'₁₀₀
16	x,y,-z,-1	m'₀₀₁

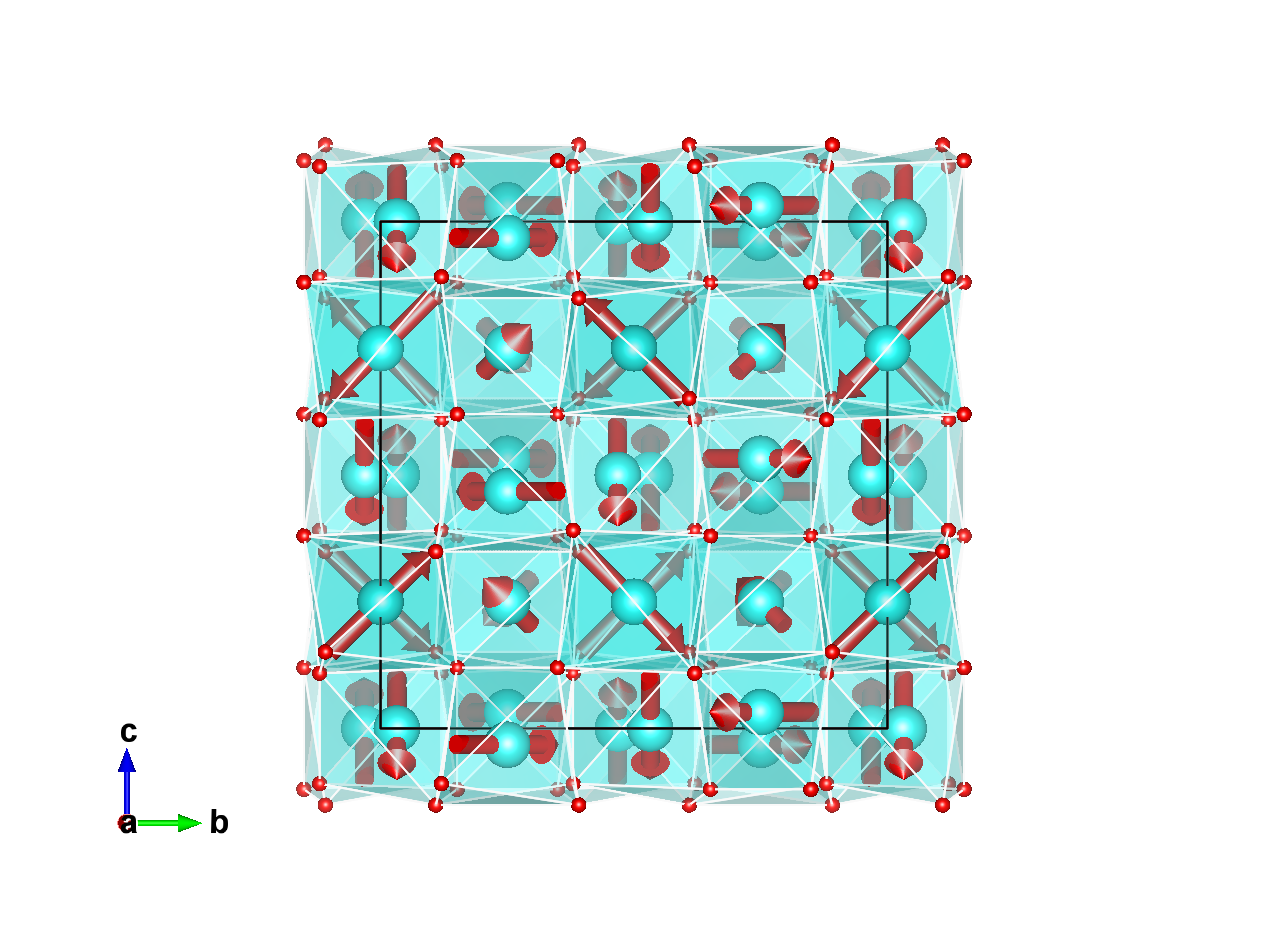

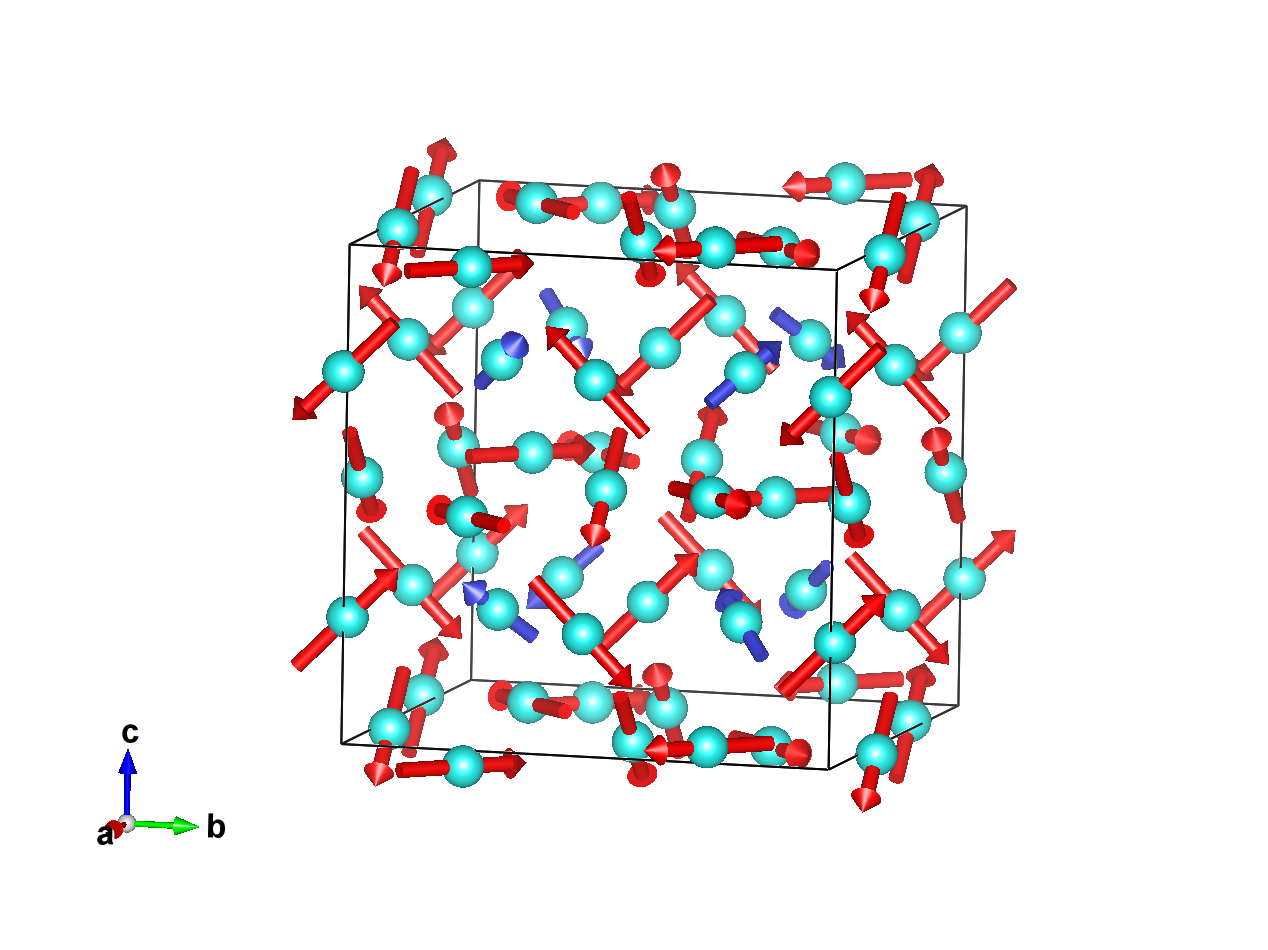

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Yb1	Yb	0.25000	0.25000	0.25000	8	m_x,m_y,m_z	0.61	-0.61	-0.61	1.06
Yb2_1	Yb	0.96790	0.00000	0.25000	8	0,m_y,m_z	0.0	1.32	1.32	1.87
Yb2_2	Yb	0.25000	0.96790	0.00000	8	m_x,0,m_z	-1.32	0.0	1.32	1.87
Yb2_3	Yb	0.00000	0.25000	0.96790	8	m_x,m_y,0	-1.32	1.32	0.0	1.87

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
O1_1	O	0.39100	0.15100	0.38000	16
O1_2	O	0.38000	0.39100	0.15100	16
O1_3	O	0.15100	0.38000	0.39100	16

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Yb1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.25000	m_x,m_y,m_z	0.61000	-0.61000	-0.61000
2	0.75000	0.75000	0.25000	-m_x,m_y,-m_z	-0.61000	-0.61000	0.61000
3	0.75000	0.25000	0.75000	m_x,-m_y,-m_z	0.61000	0.61000	0.61000
4	0.25000	0.75000	0.75000	-m_x,-m_y,m_z	-0.61000	0.61000	-0.61000
(1/2,1/2,1/2)' + set click here to show and hide
5	0.75000	0.75000	0.75000	-m_x,-m_y,-m_z	-0.61000	0.61000	0.61000
6	0.25000	0.25000	0.75000	m_x,-m_y,m_z	0.61000	0.61000	-0.61000
7	0.25000	0.75000	0.25000	-m_x,m_y,m_z	-0.61000	-0.61000	-0.61000
8	0.75000	0.25000	0.25000	m_x,m_y,-m_z	0.61000	-0.61000	0.61000

Set of atoms in the unit cell related by symmetry with the magnetic atom Yb2_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.96790	0.00000	0.25000	0,m_y,m_z	0.00000	1.32000	1.32000
2	0.03210	0.50000	0.25000	0,m_y,-m_z	0.00000	1.32000	-1.32000
3	0.53210	0.50000	0.25000	0,m_y,m_z	0.00000	1.32000	1.32000
4	0.46790	0.00000	0.25000	0,m_y,-m_z	0.00000	1.32000	-1.32000
(1/2,1/2,1/2)' + set click here to show and hide
5	0.46790	0.50000	0.75000	0,-m_y,-m_z	0.00000	-1.32000	-1.32000
6	0.53210	0.00000	0.75000	0,-m_y,m_z	0.00000	-1.32000	1.32000
7	0.03210	0.00000	0.75000	0,-m_y,-m_z	0.00000	-1.32000	-1.32000
8	0.96790	0.50000	0.75000	0,-m_y,m_z	0.00000	-1.32000	1.32000

Set of atoms in the unit cell related by symmetry with the magnetic atom Yb2_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.96790	0.00000	m_x,0,m_z	-1.32000	0.00000	1.32000
2	0.75000	0.53210	0.00000	m_x,0,-m_z	-1.32000	0.00000	-1.32000
3	0.25000	0.53210	0.50000	m_x,0,m_z	-1.32000	0.00000	1.32000
4	0.75000	0.96790	0.50000	m_x,0,-m_z	-1.32000	0.00000	-1.32000
(1/2,1/2,1/2)' + set click here to show and hide
5	0.75000	0.46790	0.50000	-m_x,0,-m_z	1.32000	0.00000	-1.32000
6	0.25000	0.03210	0.50000	-m_x,0,m_z	1.32000	0.00000	1.32000
7	0.75000	0.03210	0.00000	-m_x,0,-m_z	1.32000	0.00000	-1.32000
8	0.25000	0.46790	0.00000	-m_x,0,m_z	1.32000	0.00000	1.32000

Set of atoms in the unit cell related by symmetry with the magnetic atom Yb2_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.96790	m_x,m_y,0	-1.32000	1.32000	0.00000
2	0.00000	0.75000	0.53210	-m_x,m_y,0	1.32000	1.32000	0.00000
3	0.50000	0.25000	0.53210	m_x,m_y,0	-1.32000	1.32000	0.00000
4	0.50000	0.75000	0.96790	-m_x,m_y,0	1.32000	1.32000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
5	0.50000	0.75000	0.46790	-m_x,-m_y,0	1.32000	-1.32000	0.00000
6	0.50000	0.25000	0.03210	m_x,-m_y,0	-1.32000	-1.32000	0.00000
7	0.00000	0.75000	0.03210	-m_x,-m_y,0	1.32000	-1.32000	0.00000
8	0.00000	0.25000	0.46790	m_x,-m_y,0	-1.32000	-1.32000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Atom	x	y	z
1	0.39100	0.15100	0.38000
2	0.60900	0.65100	0.12000
3	0.89100	0.34900	0.62000
4	0.10900	0.84900	0.88000
5	0.10900	0.34900	0.12000
6	0.89100	0.84900	0.38000
7	0.60900	0.15100	0.88000
8	0.39100	0.65100	0.62000
(1/2,1/2,1/2)' + set click here to show and hide
9	0.89100	0.65100	0.88000
10	0.10900	0.15100	0.62000
11	0.39100	0.84900	0.12000
12	0.60900	0.34900	0.38000
13	0.60900	0.84900	0.62000
14	0.39100	0.34900	0.88000
15	0.10900	0.65100	0.38000
16	0.89100	0.15100	0.12000

Set of atoms in the unit cell related by symmetry with the atom O1_2:

Atom	x	y	z
1	0.38000	0.39100	0.15100
2	0.62000	0.89100	0.34900
3	0.88000	0.10900	0.84900
4	0.12000	0.60900	0.65100
5	0.12000	0.10900	0.34900
6	0.88000	0.60900	0.15100
7	0.62000	0.39100	0.65100
8	0.38000	0.89100	0.84900
(1/2,1/2,1/2)' + set click here to show and hide
9	0.88000	0.89100	0.65100
10	0.12000	0.39100	0.84900
11	0.38000	0.60900	0.34900
12	0.62000	0.10900	0.15100
13	0.62000	0.60900	0.84900
14	0.38000	0.10900	0.65100
15	0.12000	0.89100	0.15100
16	0.88000	0.39100	0.34900

Set of atoms in the unit cell related by symmetry with the atom O1_3:

Atom	x	y	z
1	0.15100	0.38000	0.39100
2	0.84900	0.88000	0.10900
3	0.65100	0.12000	0.60900
4	0.34900	0.62000	0.89100
5	0.34900	0.12000	0.10900
6	0.65100	0.62000	0.39100
7	0.84900	0.38000	0.89100
8	0.15100	0.88000	0.60900
(1/2,1/2,1/2)' + set click here to show and hide
9	0.65100	0.88000	0.89100
10	0.34900	0.38000	0.60900
11	0.15100	0.62000	0.10900
12	0.84900	0.12000	0.39100
13	0.84900	0.62000	0.60900
14	0.15100	0.12000	0.89100
15	0.34900	0.88000	0.39100
16	0.65100	0.38000	0.10900

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Yb1	Yb	0.25000	0.25000	0.25000	8	m_x,m_y,m_z	0.61	-0.61	-0.61	1.06
Yb2_1	Yb	0.96790	0.00000	0.25000	8	0,m_y,m_z	0.0	1.32	1.32	1.87
Yb2_2	Yb	0.25000	0.96790	0.00000	8	m_x,0,m_z	-1.32	0.0	1.32	1.87
Yb2_3	Yb	0.00000	0.25000	0.96790	8	m_x,m_y,0	-1.32	1.32	0.0	1.87
